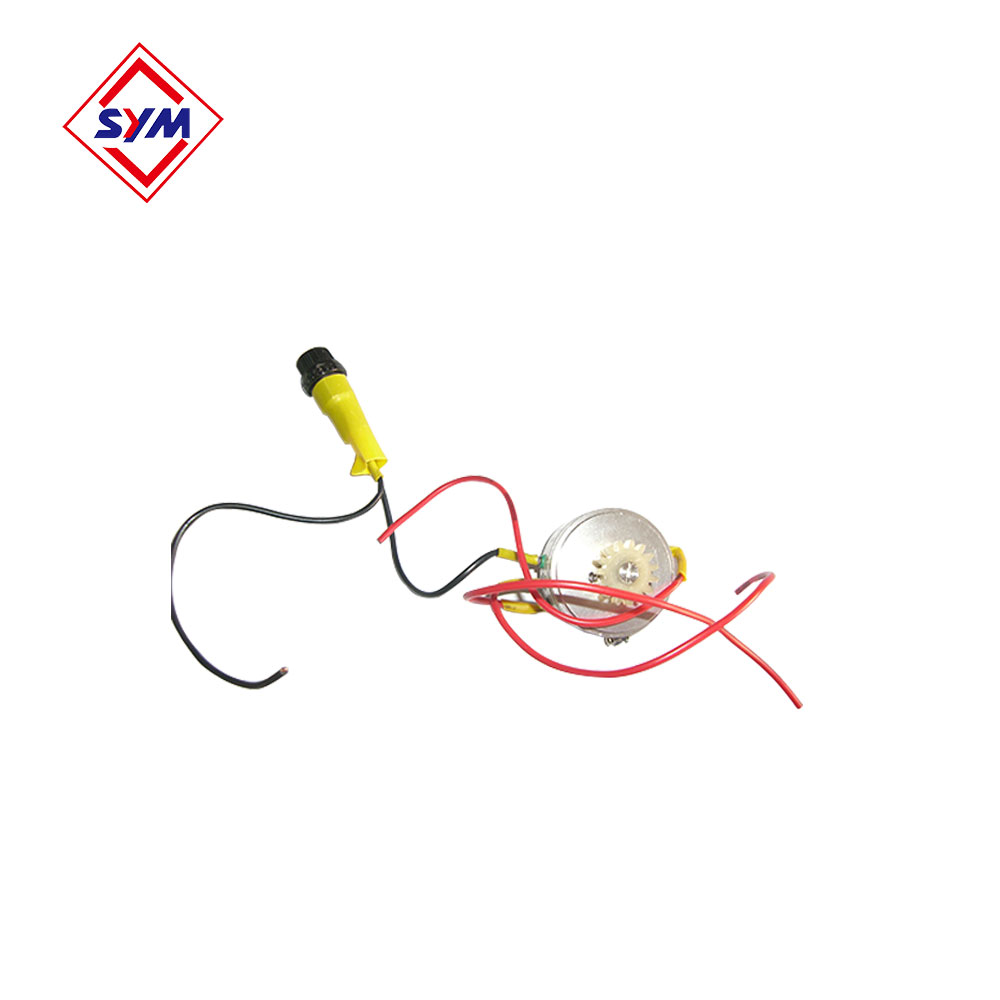

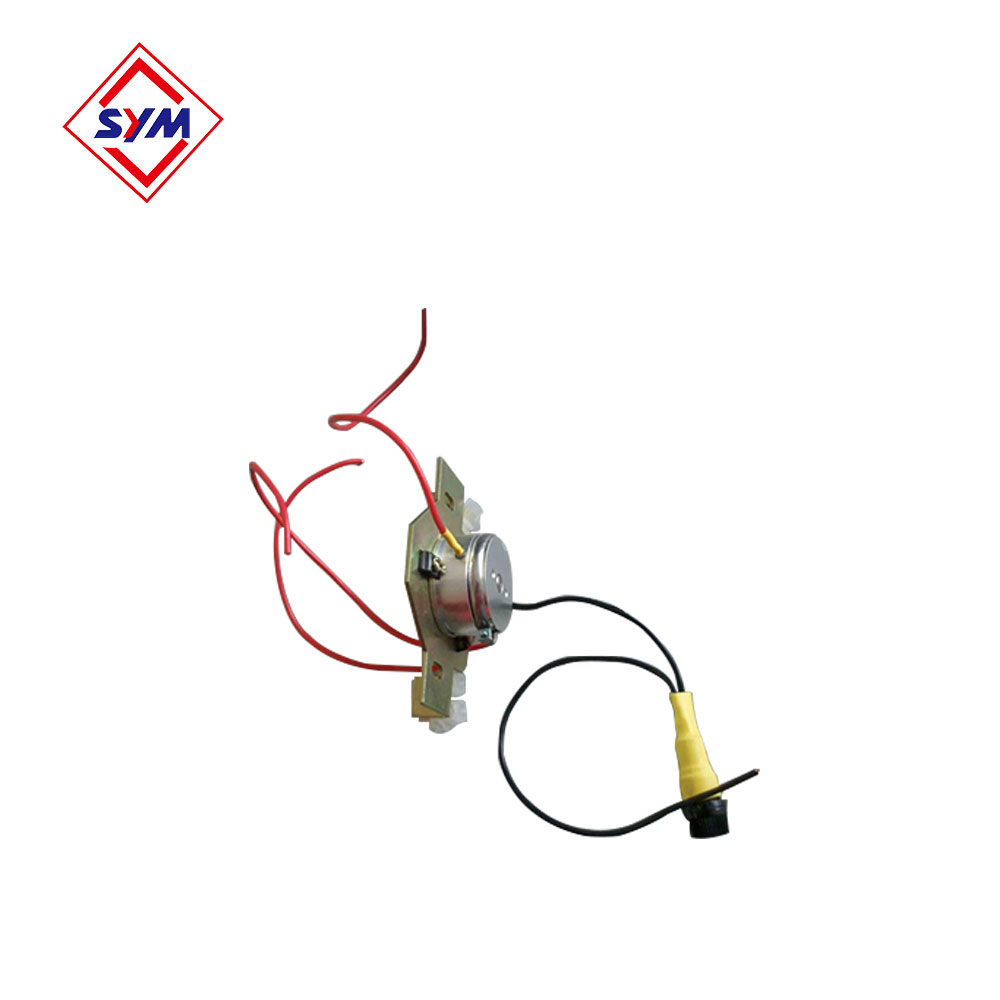

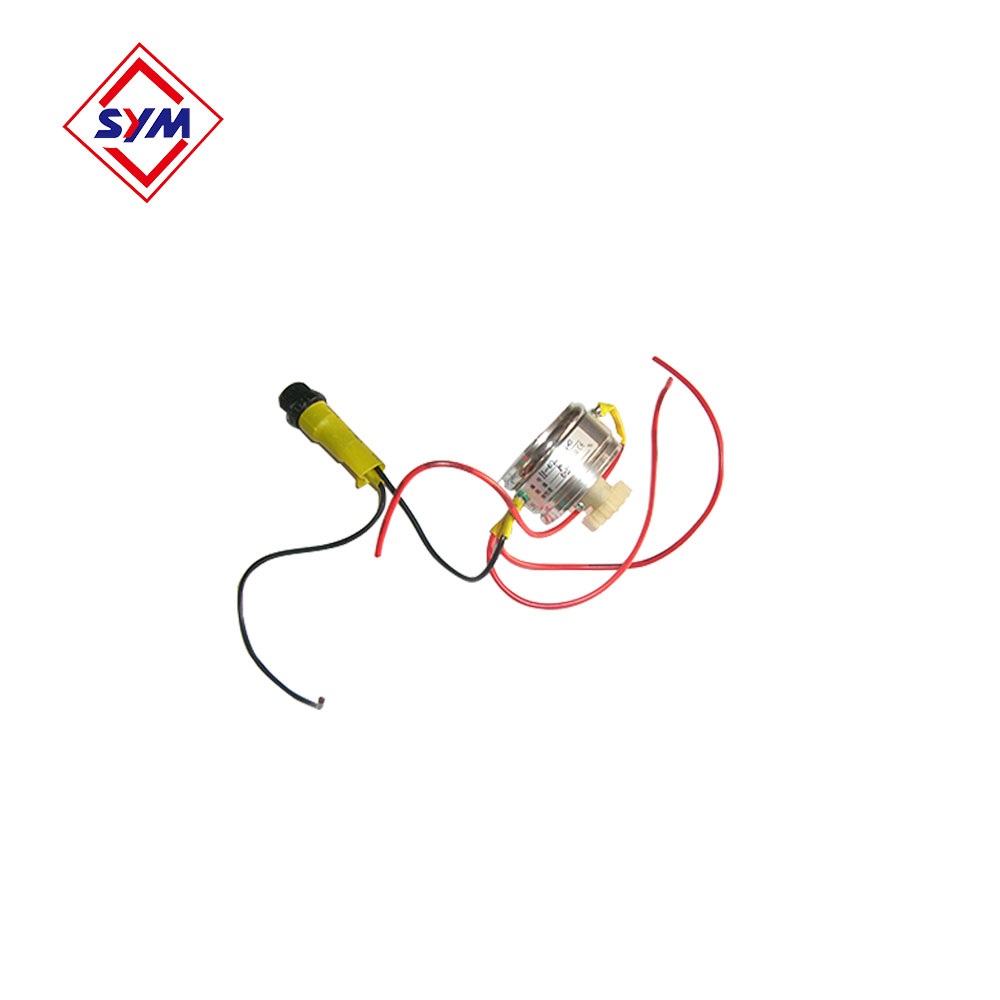

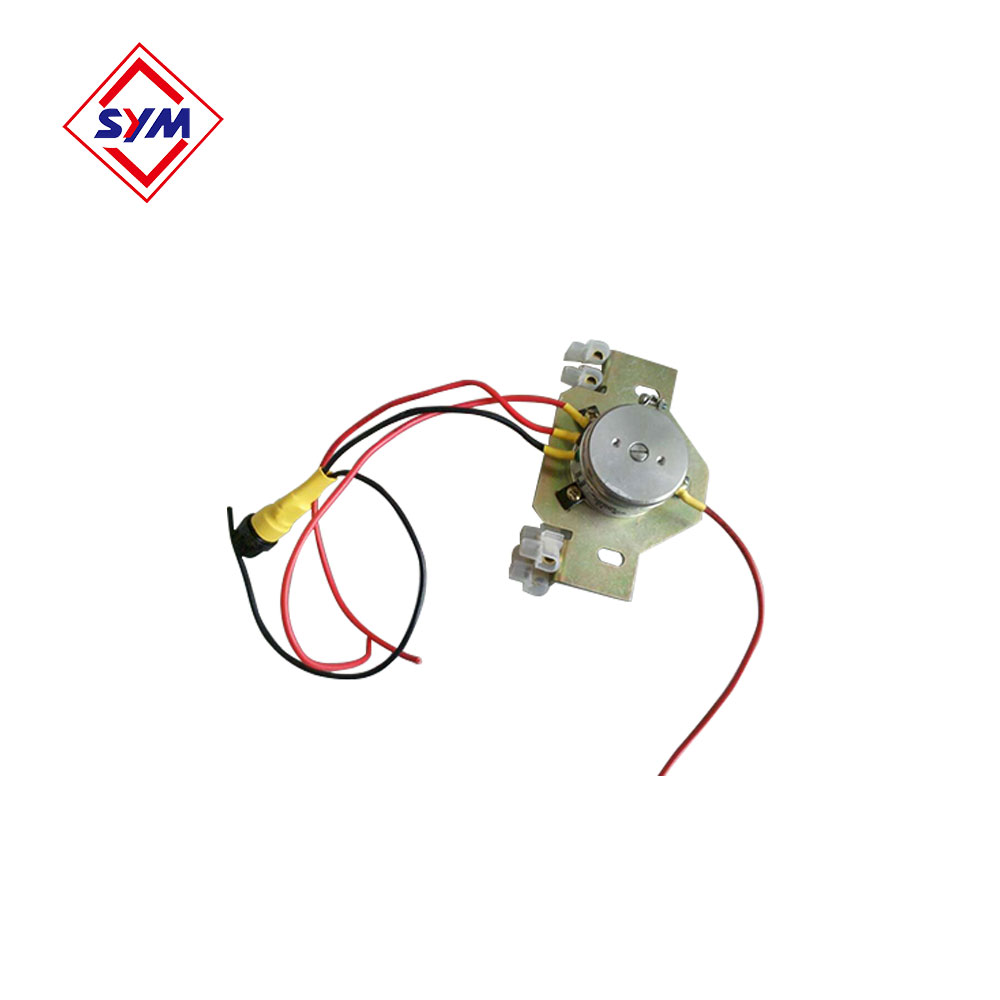

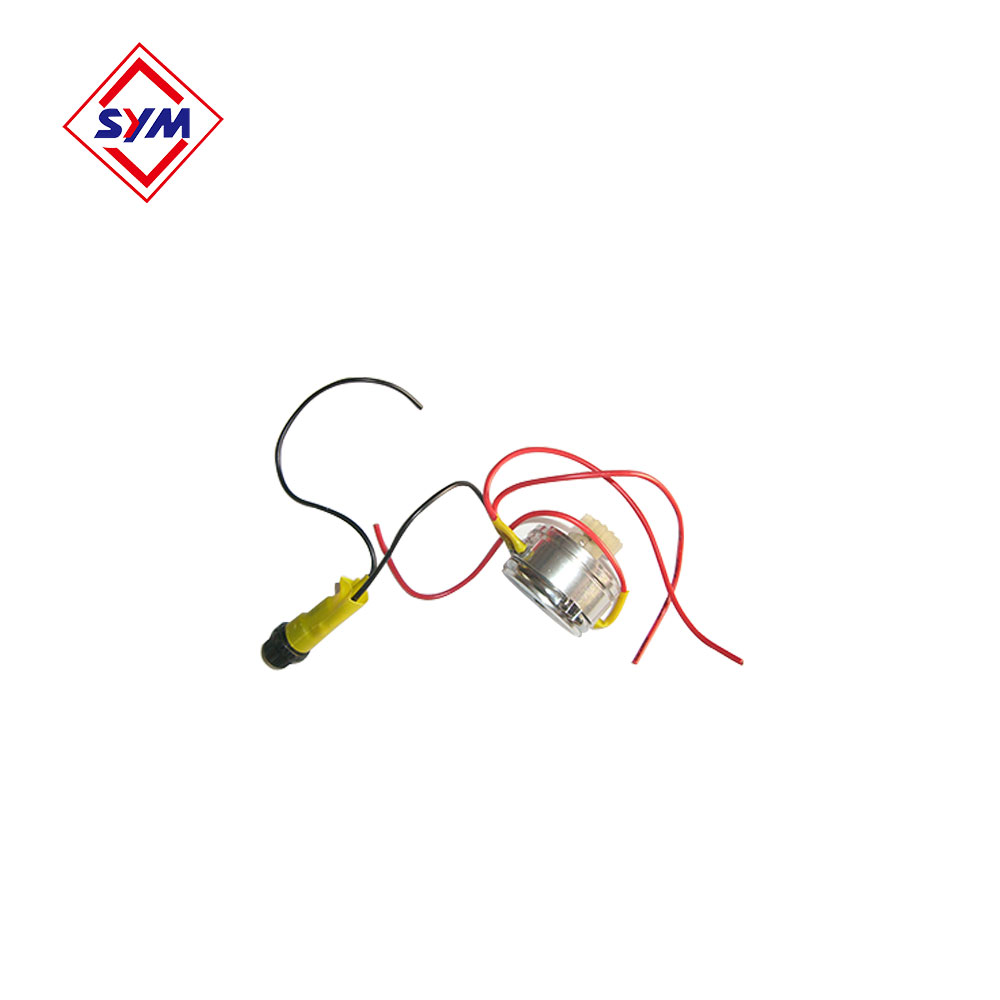

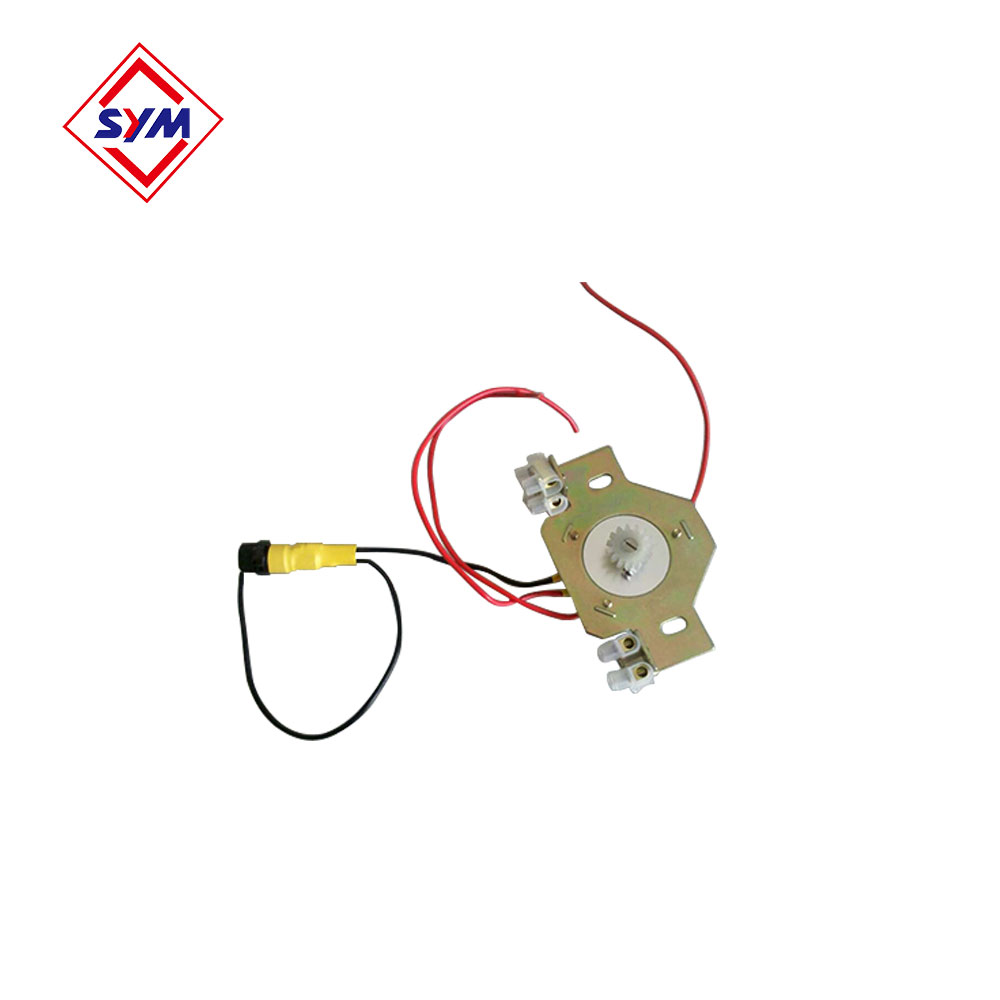

10KOHM/5KOHM Potentiometer for tower crane

Quantity:
  • 8431499900

1

Product Description

The potentiometer adopts a hard antirust aluminum case and molded integrated conductive plastic base, Imported precious metal brush and current collecting parta, stainless steel shaft with high-speed bearing ensure high linearity, long mechanical life, high resolution, less dynamic noise and convenient and reliable installation.

4 1



Nomianl Resistance 1K, 2K,3K,5K,10K
Resistance Tolerance ±15%
Independent Lindear Degrees 0.1%,0.2%,0.3%,0.5%,1.0%
Theory Electrical Corner 345°±2°
Power Rating 2W(@70°)
Resist Temperature Coefficient of Wire  ≤±400P.P.M/℃
Insulation Resisitance  ≥1000M 500V.D.C
Dielectric Strength  1 minute at 1000V
Output Smoothness ≤±0.10%



Mechanic Travel 360°(endless)
Starting Torque (MAX.) ≤10*10-4N.M
Bearing 2 pairs ball bearing
Shaft stainless steel
Housing Case aluminum alloy
