Chinese Manufactured PC Hoist Mechanism for Tower Crane

Quantity:
  • 24PC13A, 33PC15, 40PC20
  • SYM, SCM, YONGMAO,ZOOMLION, JIUHE
  • 8431499900

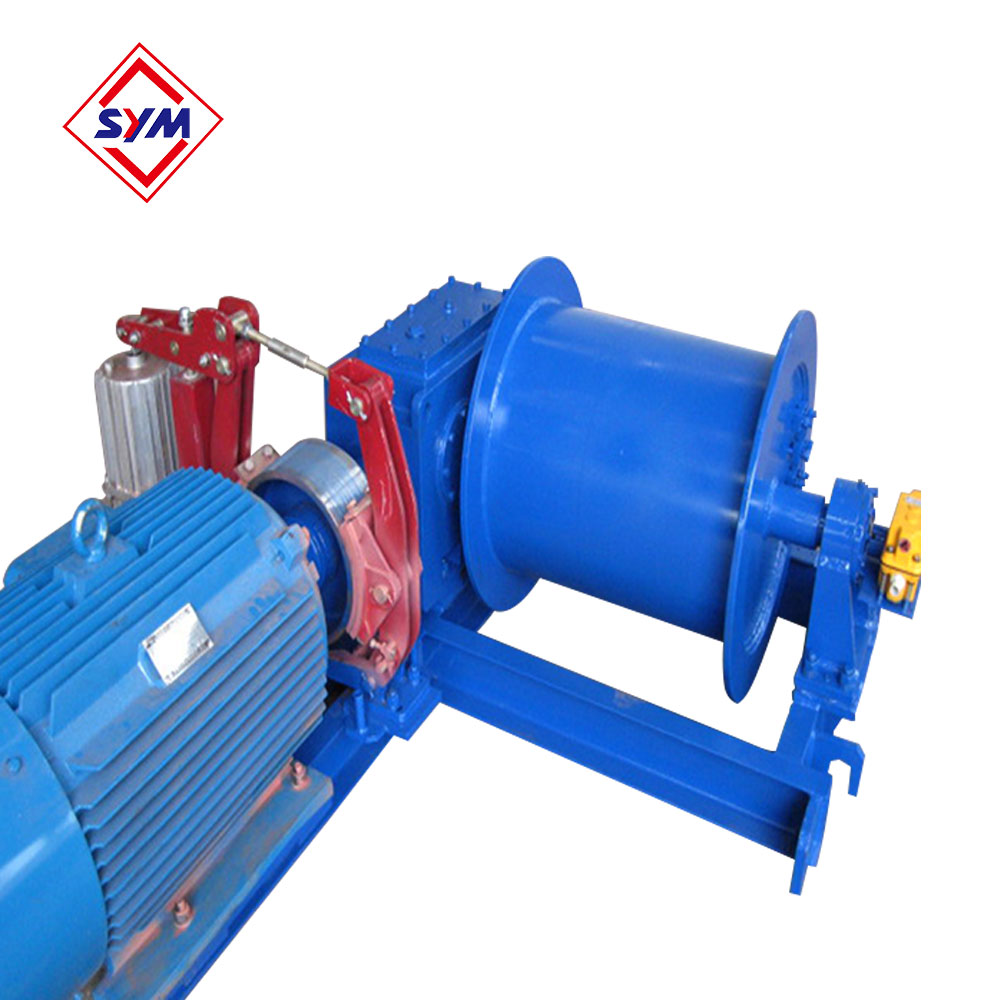

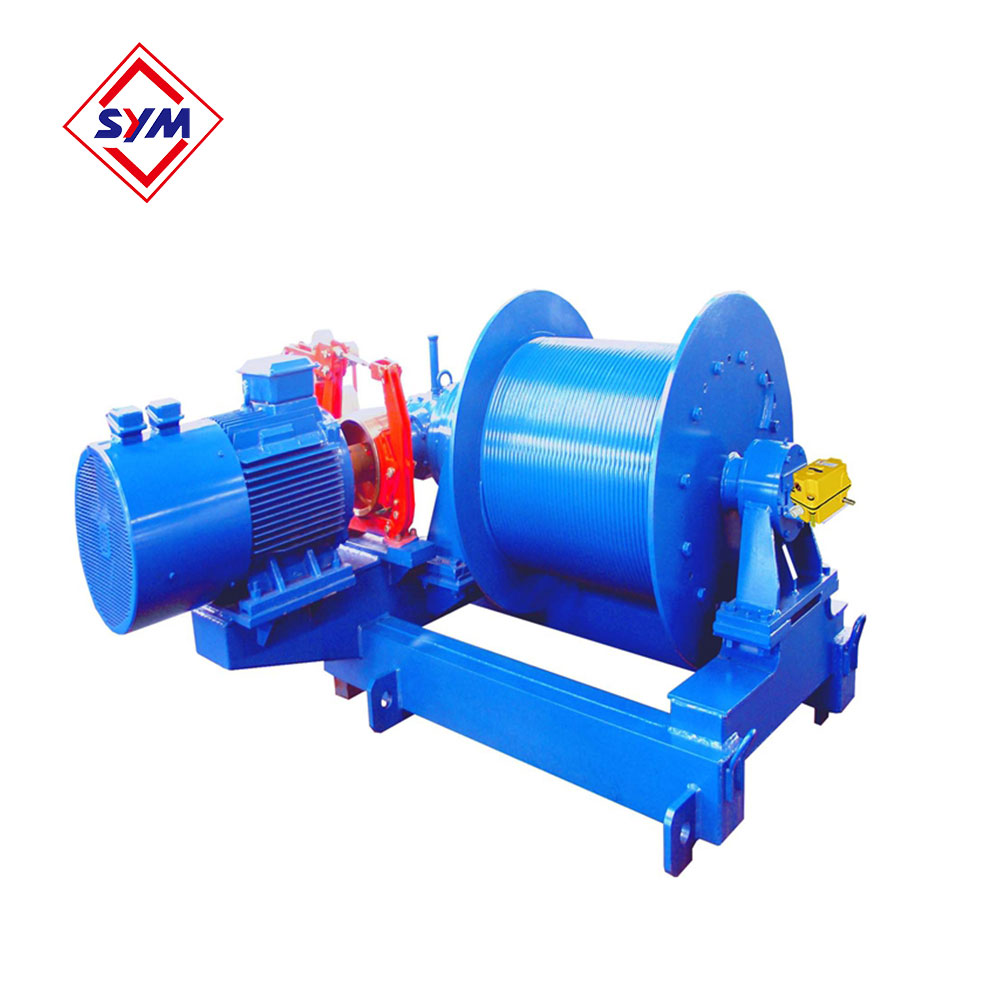

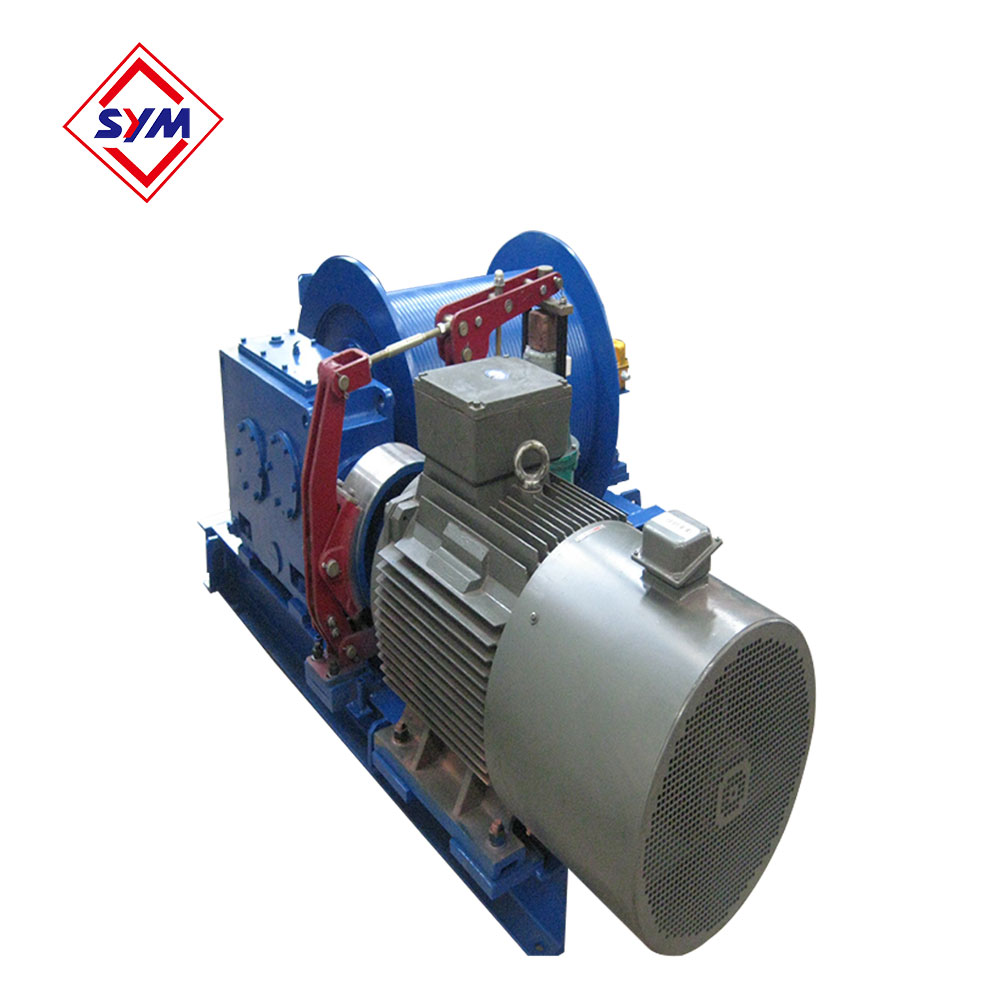

1Hoist Mechanism including hoist motor, hoist reducer, hoist control panelbox, resistance box, drum and limit switch.

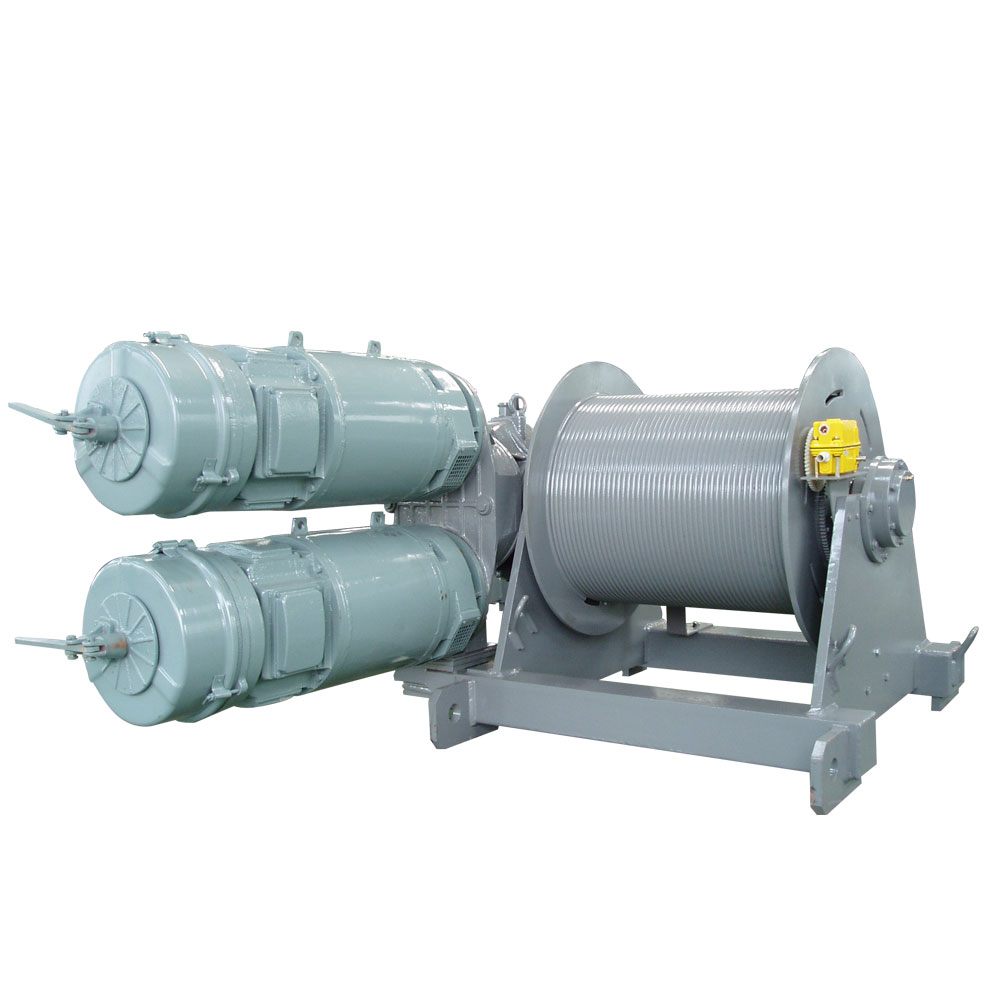

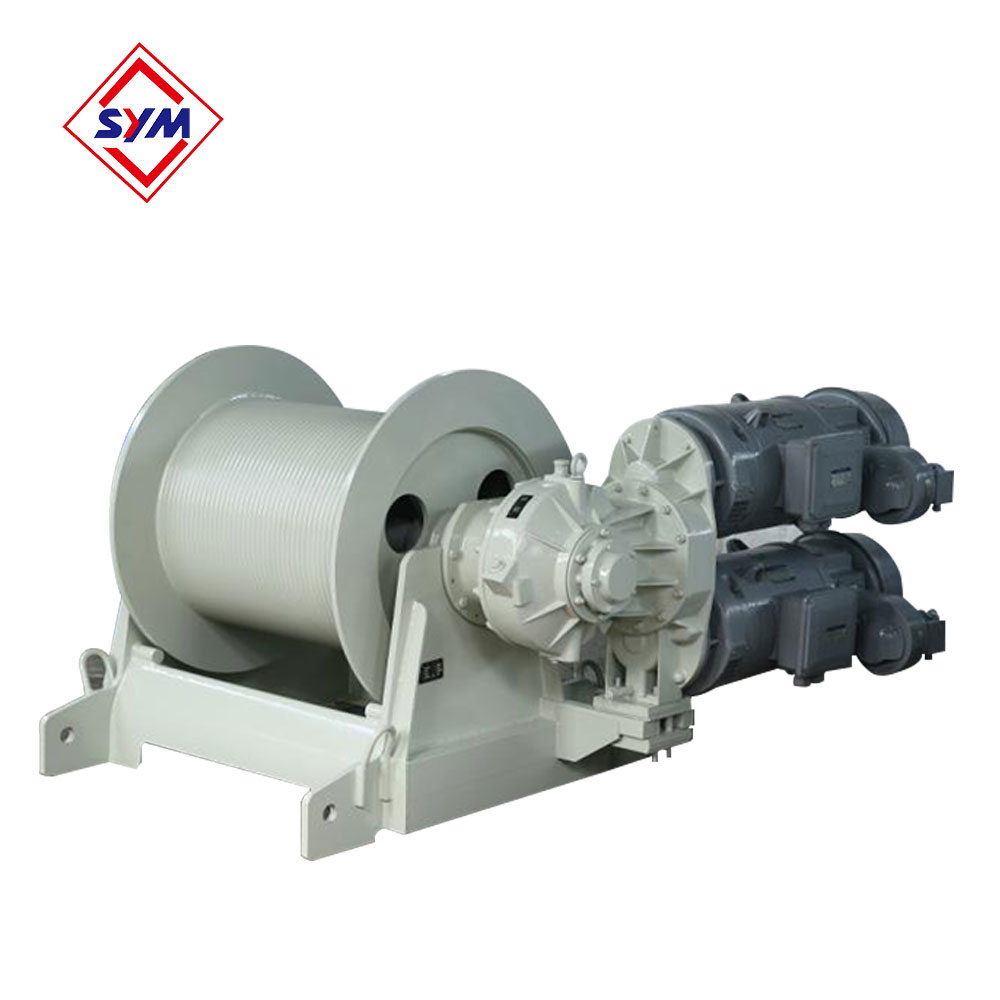

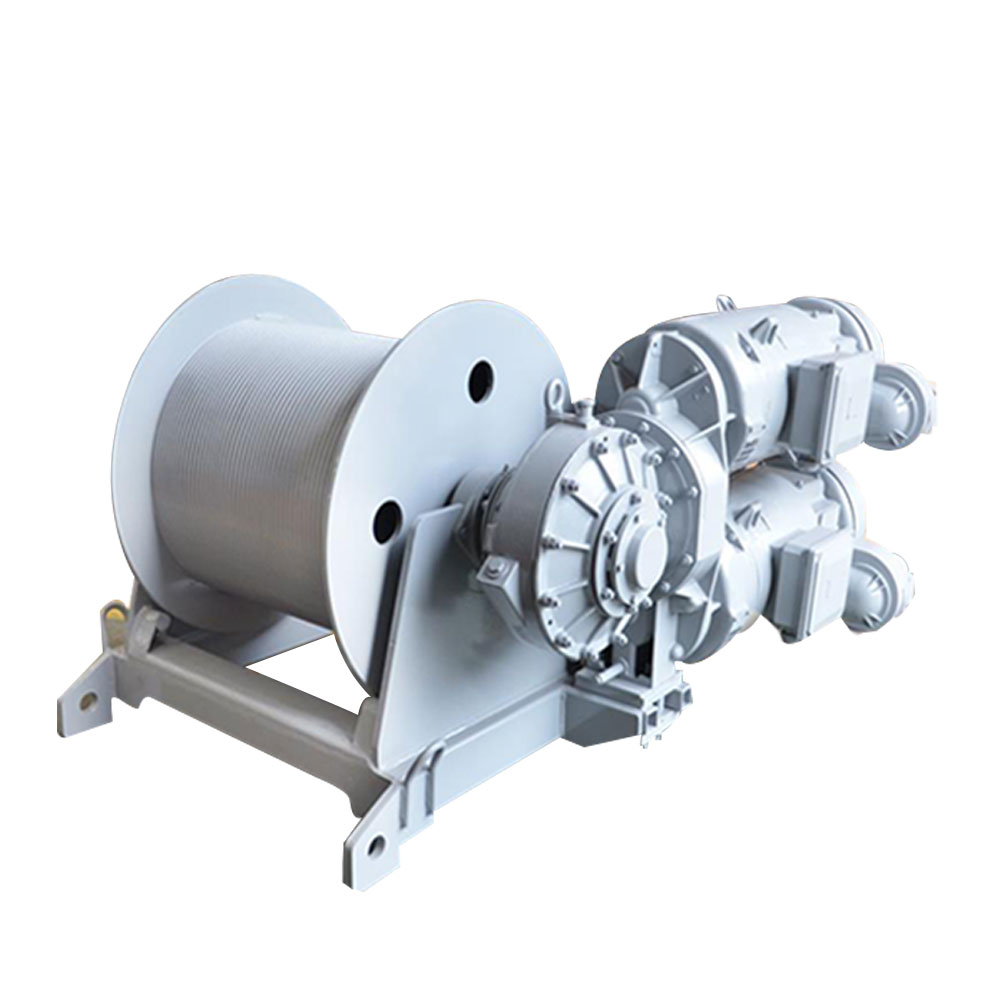

RCS Hoist Mechanism

Technical Parameters
Model 45RCS20 55RCS25 70RCS25 70RCS30 70RCS40
Rated Single Rope Tension KN 20 25 25 30 40
Magnification 4 4 4 4 4
Rated Power of the Motor (KW) 33 41 51.5 51.5 51.5
Frequency  (Hz) 50 50 50 50 50
Hoisting Speed  (m/min) 20/40 21/42 25/50 12/6 15/30
Hoisting Capacity (t) 8/4 10/5 10/5 12/6 16/8
Rope Capacity (m) 328 500 550 525 550
Nominal Diameter of Wirerope (mm) 13 14 14 18 20
1 2

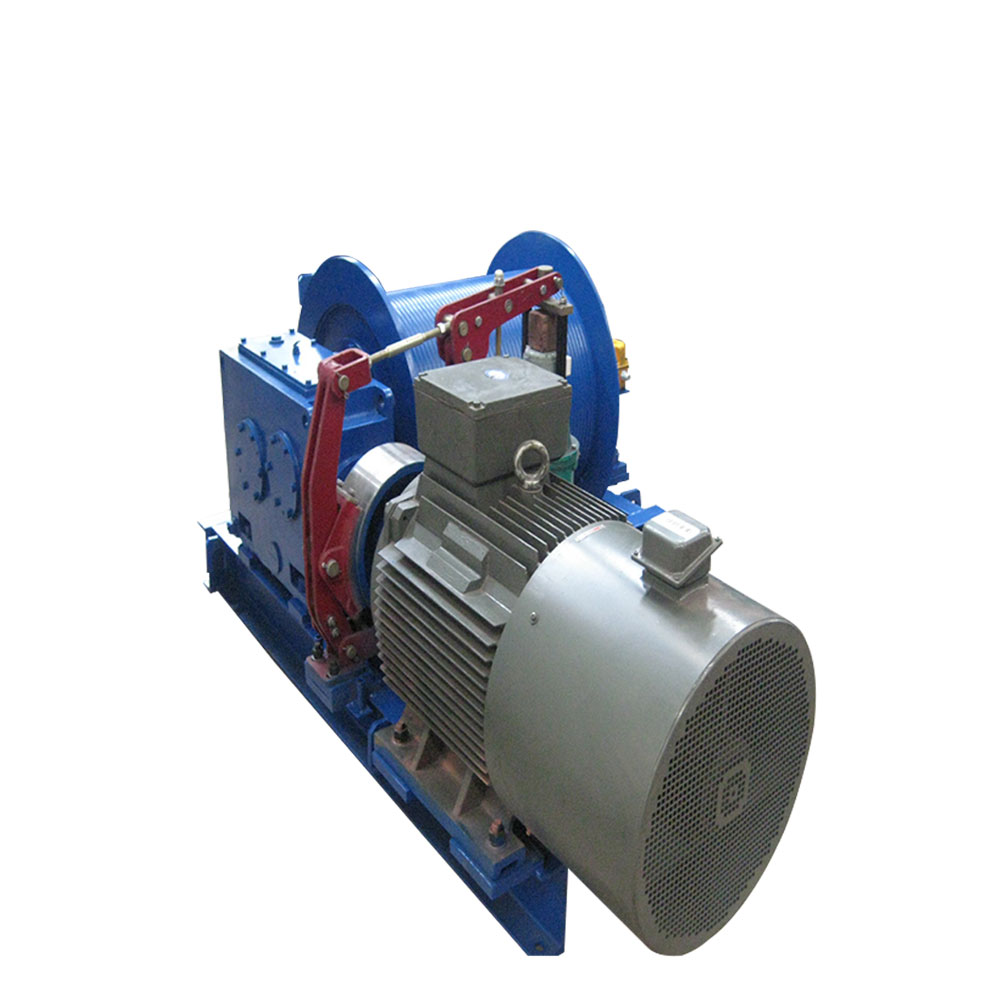

LVF Hoist Mechanism

Technical Parameters
Model  25LVF13  33LVF15
Rated Single Rope Tension (KN)   13 15
Magnification  2
Rated Power of the Motor (KW)   18.5   24
Working Frequency (Hz)  6-50-100   6-50-100   6-50-100   6-50-100
Hoisting Speed (m/min)  4.5-37-75  2.2-18-37  5-40-80  2.5-20-40
Hoisting Capacity (t)  2.5-2.5-1.25  5-5-2.5  3-3-1.5  6-6-3
Rope Capacity (m) 360   410
Nominal Diameter of Wirerope (mm) 10   12
 1'     2'

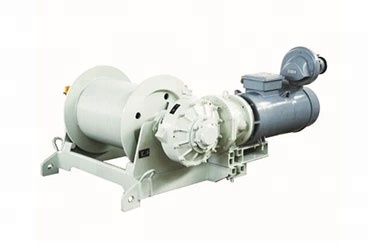

PC Hoist Mechaniam

Technical Parameters
Model 25PC13 33PC15 40PC20
Rated Single Rope Tension (KN) 13 15 20
Magnification 4 4 4
Rated Power of the Motor (KW) 18/18/3.5 24/24/5.5 30
Working Frequency (Hz) 50 50 50
Hoisting Speed (m/min) 33.5-17-3 37.5-19-3 35-17.5-3
Hoisting Capacity (t) 2.5-2.5-5 3-6-6 2-4-8
Rope Capacity (m) 360 400 440
Nominal Diameter of Wirerope (mm) 10 12 14
8 7
