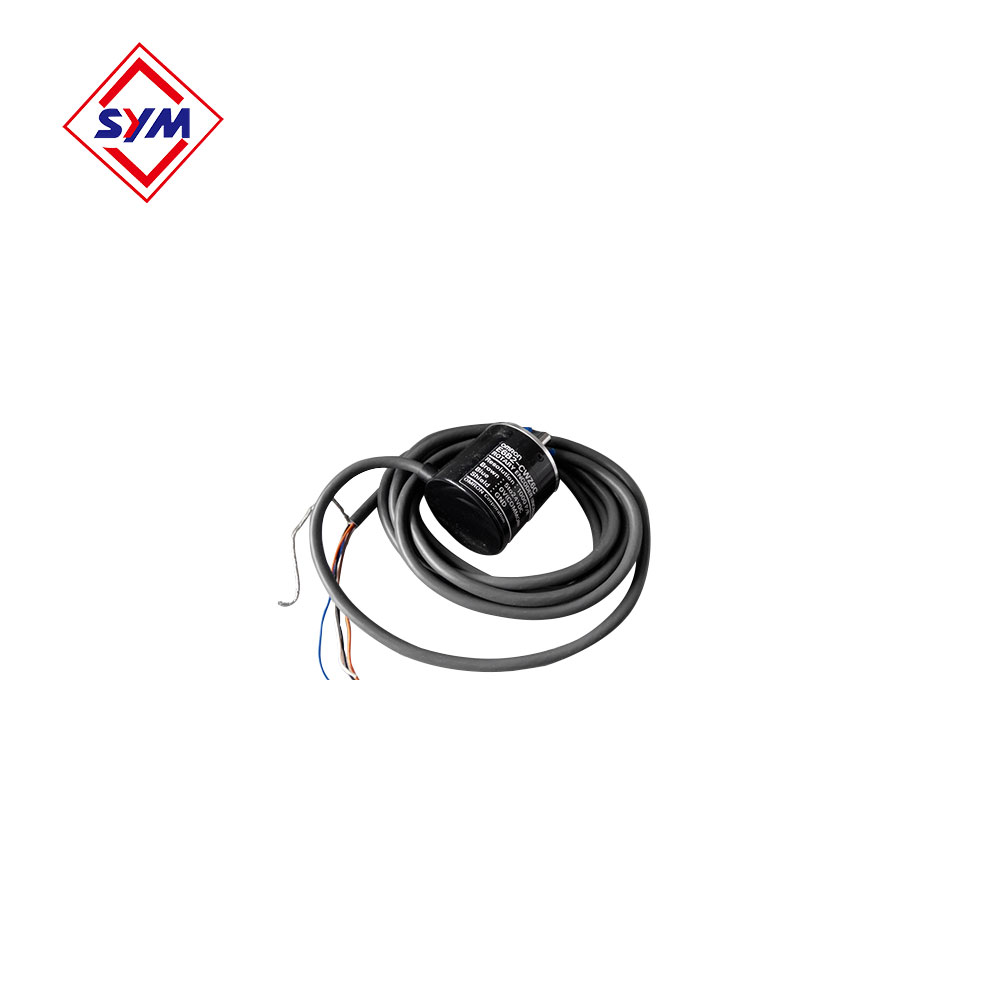

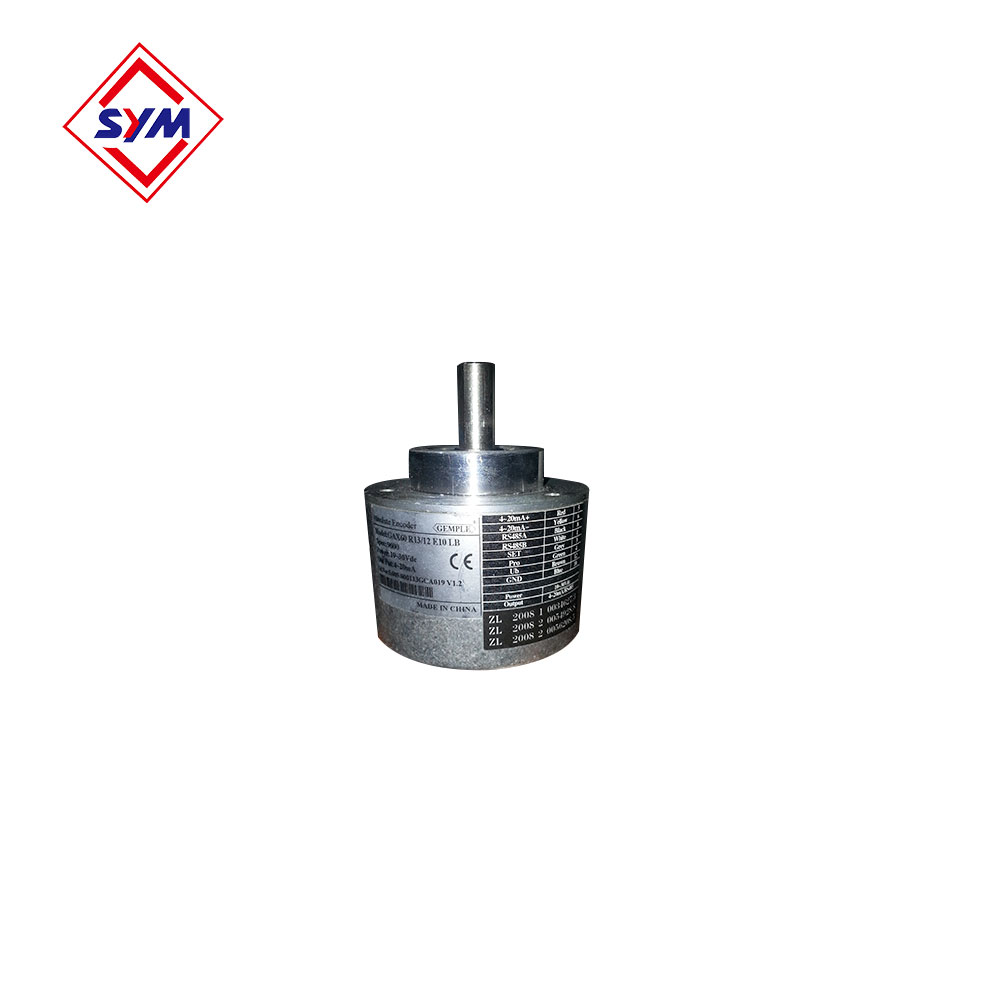

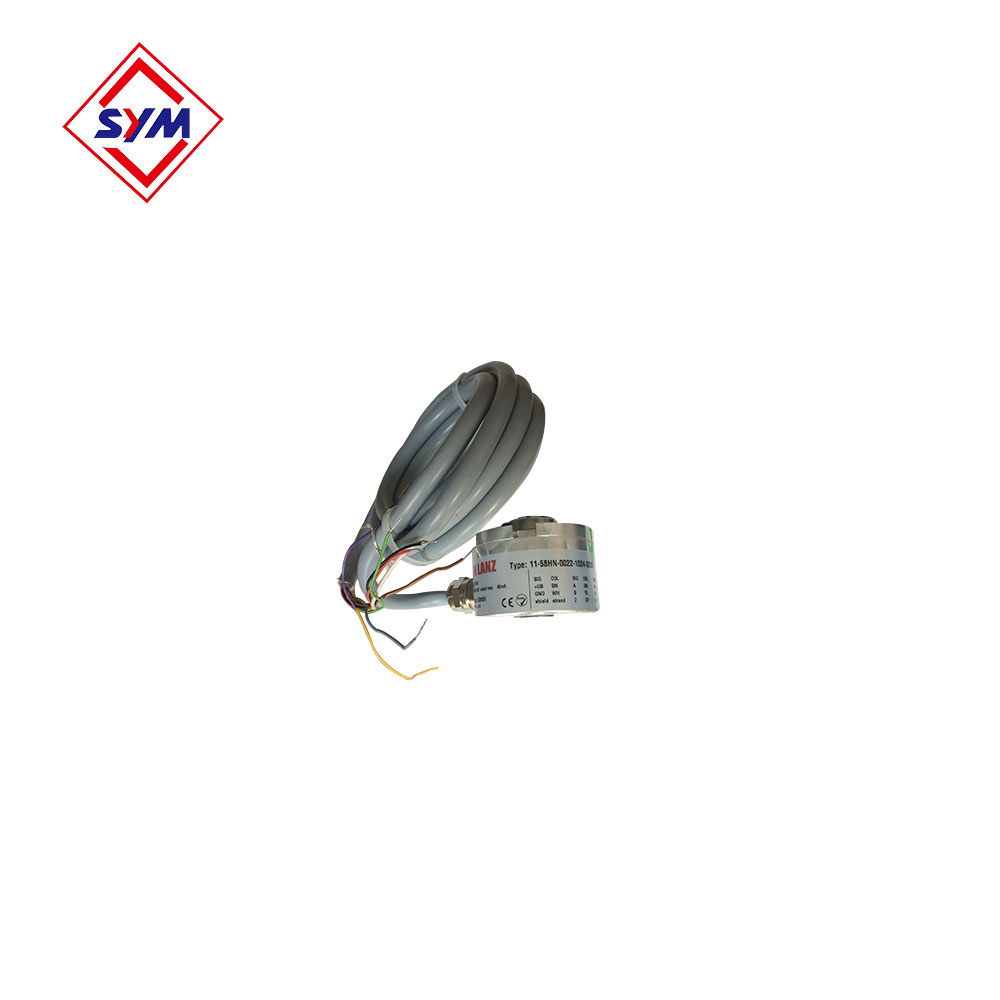

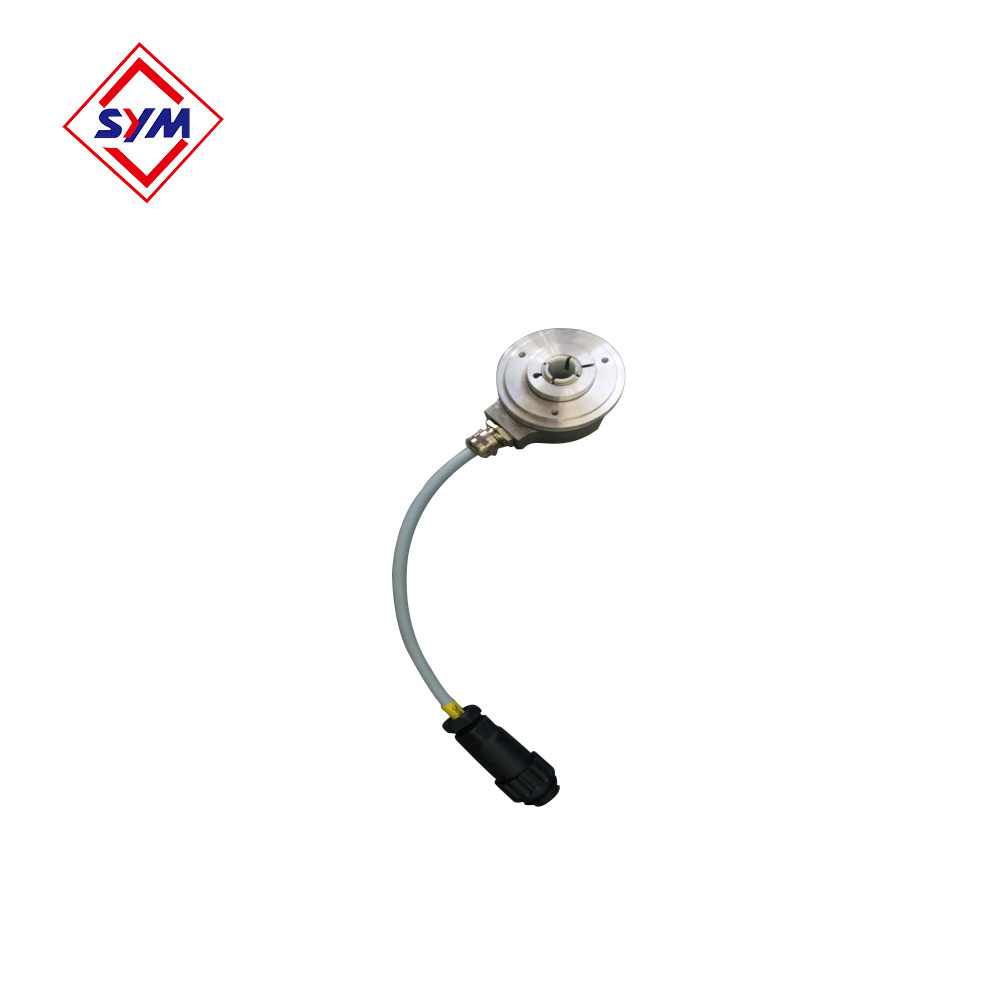

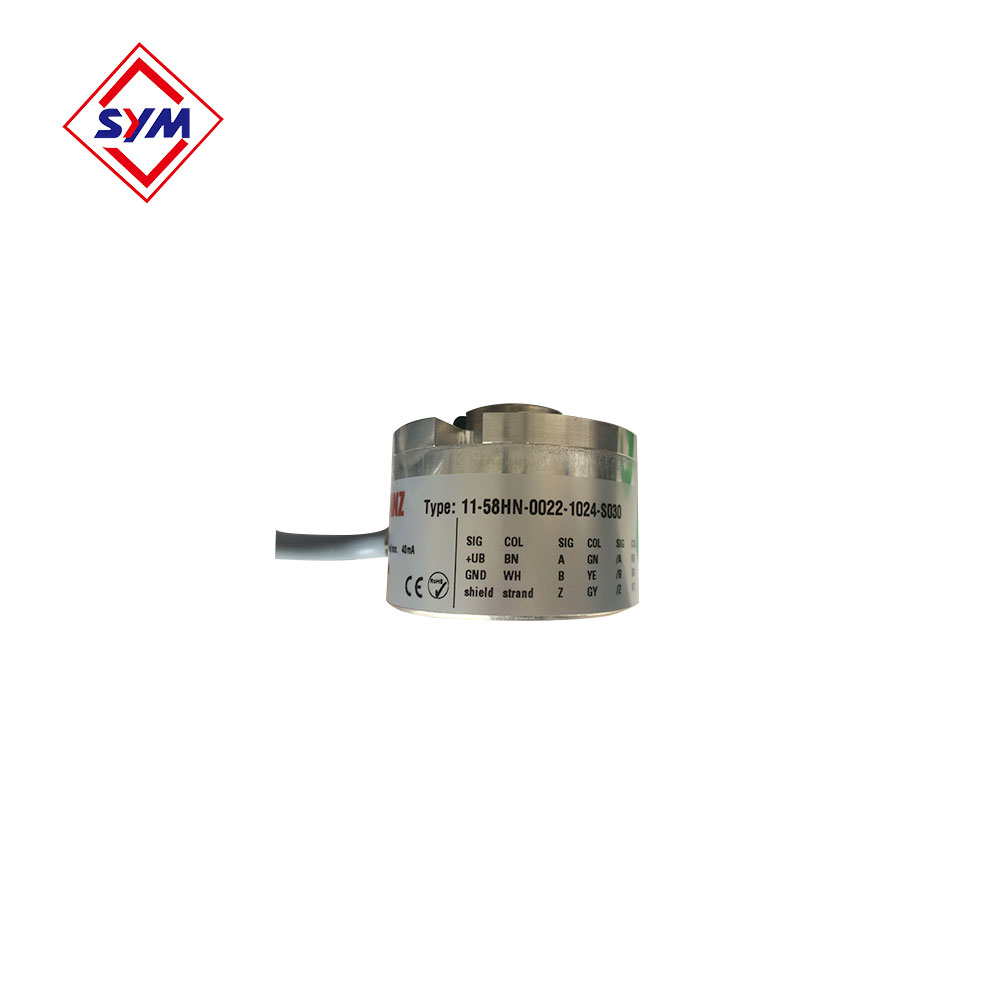

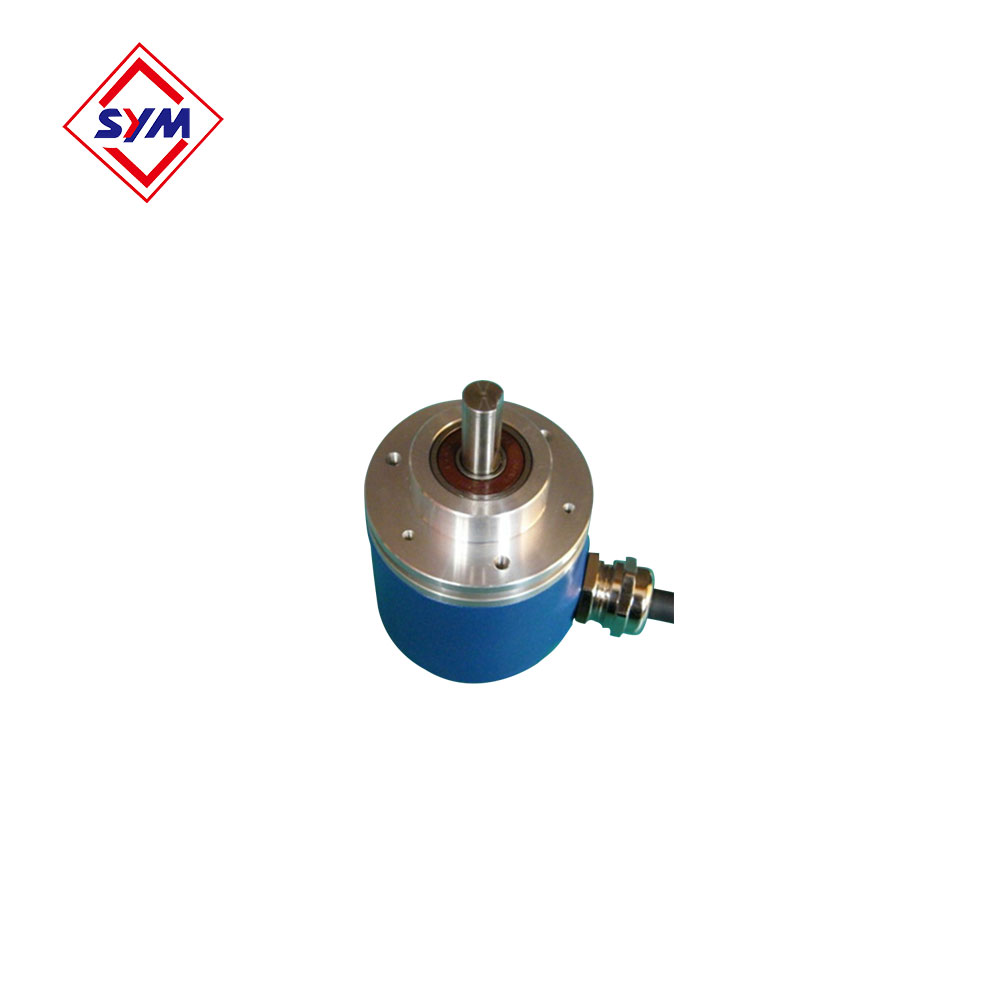

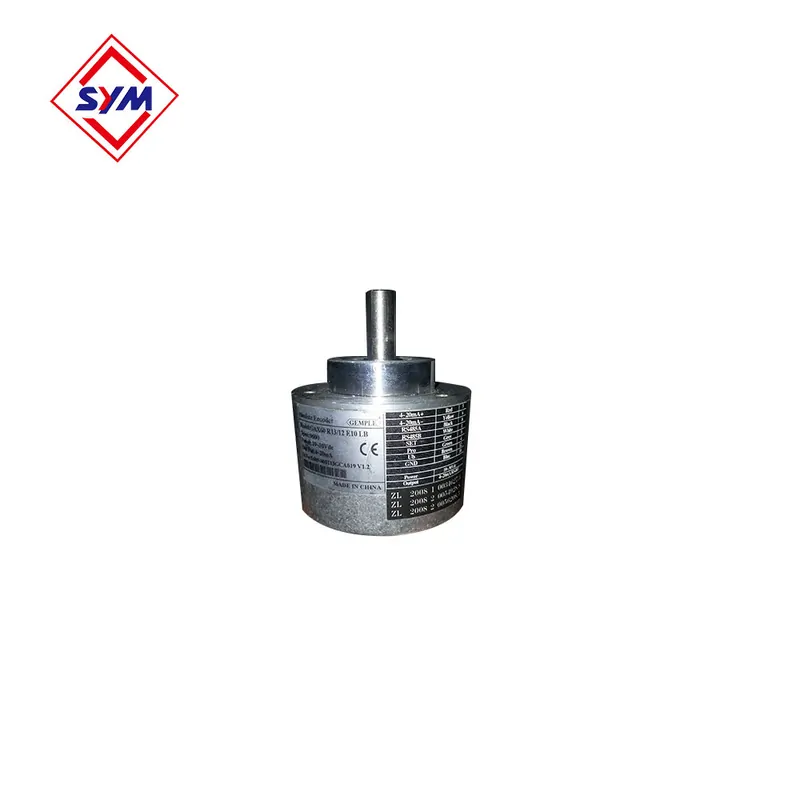

Encoder for tower crane

Quantity:
  • 11-58HN-0022-1024-S030
  • 8431499900

1

Product Description



1. outer diameter: 60mm

2. shaft diameter: 10mm or 12mm hollow shaft

3. resolution: 12bit single turn, or 25bit multurn

4. phase: A B , A B Z , A B Z A- B- Z-
5. output circuit: RS485,4~20mA, Modbus, SSI

6. 1 meter cable, can be customized, cable side
7. supply voltage: 10~30Vdc
8. max speed: 2400 r/m
9. warranty: 1 year
10. measuring angle, position
11. programmingable

12. IP65

 Multiturn encoder: 4~20mA linear output and RS485 digital output

More flexible multifunctional intelligent absolute encoder

Measuring angle, length and speed

* Absolute digital encoder, built-in signal conversion, dual-output of 4~20mA linear and RS485digital output, easy to connect a variety of devices.

*EasyPro software, multi-purpose, multi-functional, directly corresponding single lap angle, rotate and translational velocity measurement.

*4 mA~20mA corresponding set value and fine-tuning; direction set; external reset line setting the preset positions, easy to install, no need to find zero.

* Internal absolute code disc, all digital meter, no temperature and mechanical impact signal, minimal zero-point drift signal interference.

Operating voltage

10...30Vdcpolarityprotection

Current consumption

<60mA (24Vdc) no-load

Output signal

~20mARS485,(Easypro FreeProtocol), can be setthelength, angle,speed ofapplicationoutput

Linear resolution

1/4096FS

Continue lap NO.

1~4096 laps

Duplicate precision

Repeatability ± 2BIT (the actual precision and installation precision shaft concentricity related)

EasyPro

Address can be set, communication baud rate setting (9.6K~11.52K), RS485 signal connection PLC; RS485 signal turn RS232 or USB to computers, do EasyPro smart set

Signal adjustment

4mA output fine-tuning, 20 mA output fine-tuning; direction can be set; preset location, external reset (for example: external zero).

Operating temperature

-25 to 80 Celsius Programming temperature range: 0Celsius~70Celsius

Storage temperature

-40 to 80 Celsius

Protection degree

housing IP67, shaft IP65

Shock and vibration

20g, 10 ~ 2000Hz; 100g, 6ms

Allowed speed

2400 rev / min

Connection cable

1 m shielded cable radial side (the other forms can be ordered)

Shape features

metal sealed housing, sealed double-bearing structure
