Passenger Hoist Spare Parts Gear Coupling

Packaging Details STANDARD EXPORT PACKING
Delivery Time 7-15 DAYS

Quantity:
  • GJJ,BAODA

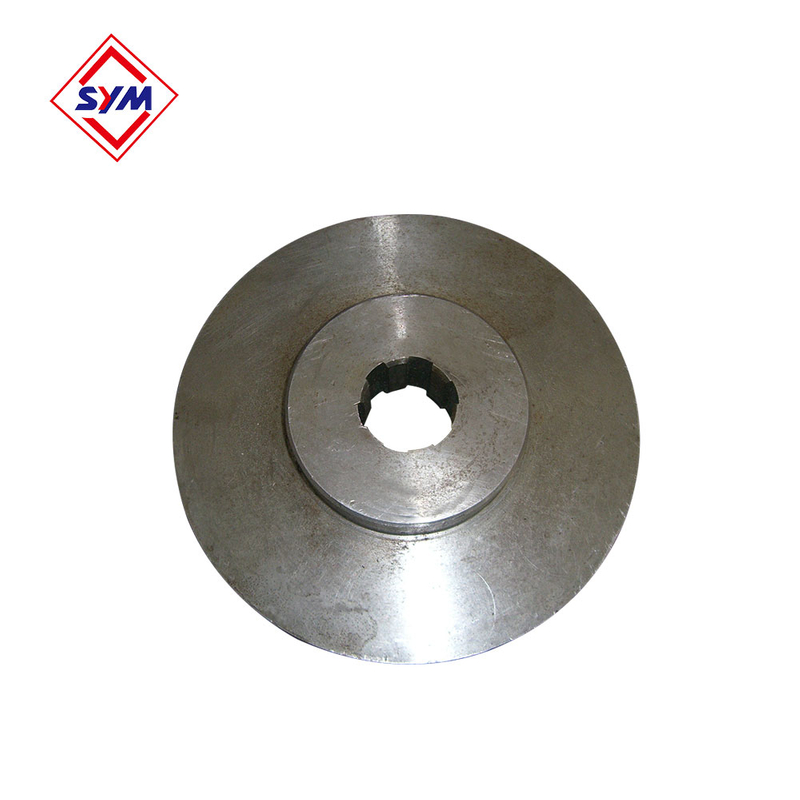

Passenger Hoist Spare Parts Gear Coupling

- MODEL Coupling with rubber
- Construction Hoist Spare Parts;
High quality hoist parts
Fast delivery
Good price


our main products are construction hoist &elevator spare parts rubber coupling   and spare parts like the motor  reducer , mast  section ,  safety device , ....

France type and QTZ type tower crane parts, mast section. anchore frame, fixing angle, pin, bolt,

various mech, assembly and spare parts, control box, resistance box and spare parts, drive room and spare parts, wire rope, pulley,

cable etc. complete anti-parts

We can also supply any part of tower crane,such as hoisting mechanism,trolleynig mechanism,slewing mechanism and so on.



Specifications - construction hoist spare parts, Coupling with Rubber



14kg coupling

17kg coupling

22kg coupling

Bearing width(H)

121-123.5

121-123.5

121-123.5

Large half thickness(H1)

84

84

84

Small half thickness(H2)

74

74

74

Elastomer thickness(h)

35

35

35

Outer diameter(D)

Ø205

Ø210

Ø210

Step diameter(D1)

Ø100

Ø120

Ø120

Large half hole length(L1)

80

80

78

Large half aperture(d1)

Ø38

Ø38

Ø38

Horizontal key width(B1)

10

10

10

Spline length(L2)

>=35

41

42

Spline minor diameter(d2)

Ø35

Ø35

Ø35

Spline major diameter(d3)

Ø40

Ø40

Ø40

Spline kew width(B2)

10

10

10

Speed(n rpm)

1500

1500

1500

Ratating inertia(1 kg.m2)

0.065

0.093

0.105


coupling
