Trolley Mechanism for Tower Crane

Quantity:
  • 4D3V2, 4D3V3, 5D3V4, 6DPC4
  • SYM, SCM, YONGMAO
  • 8431499900

1

Product Description

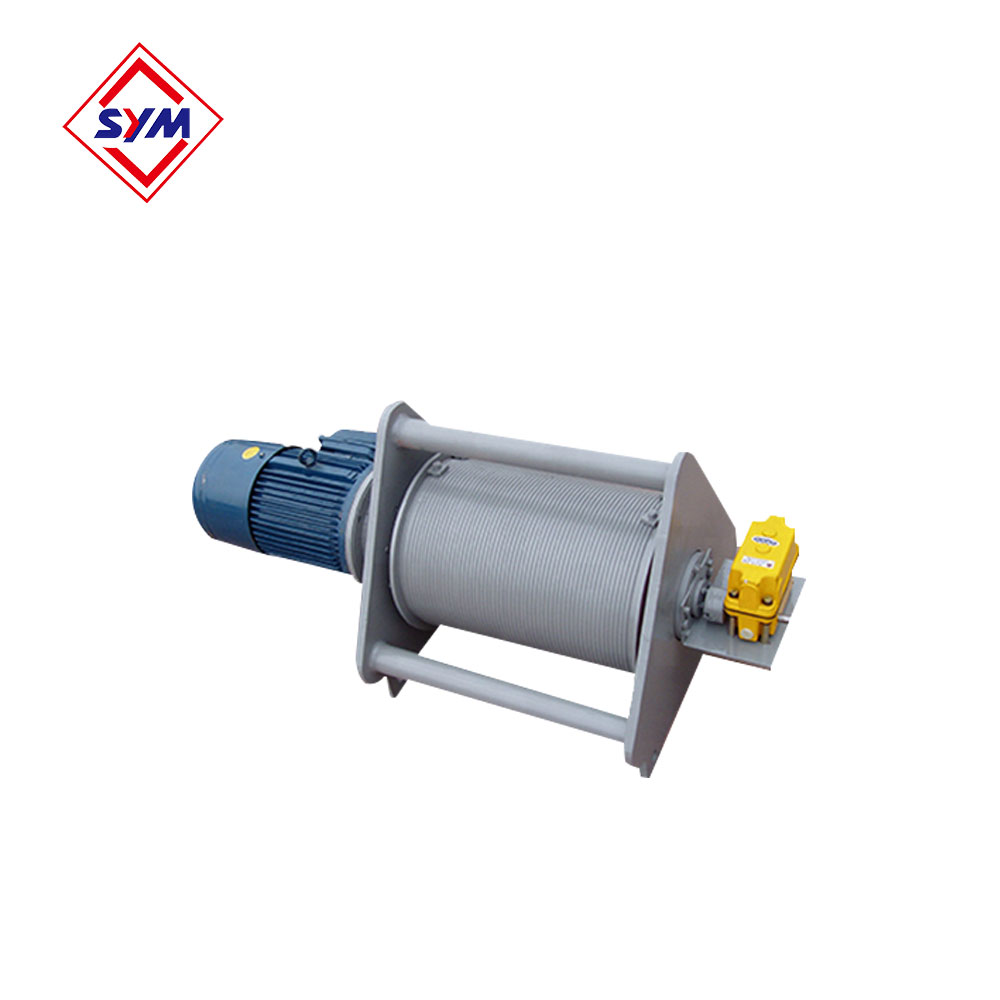

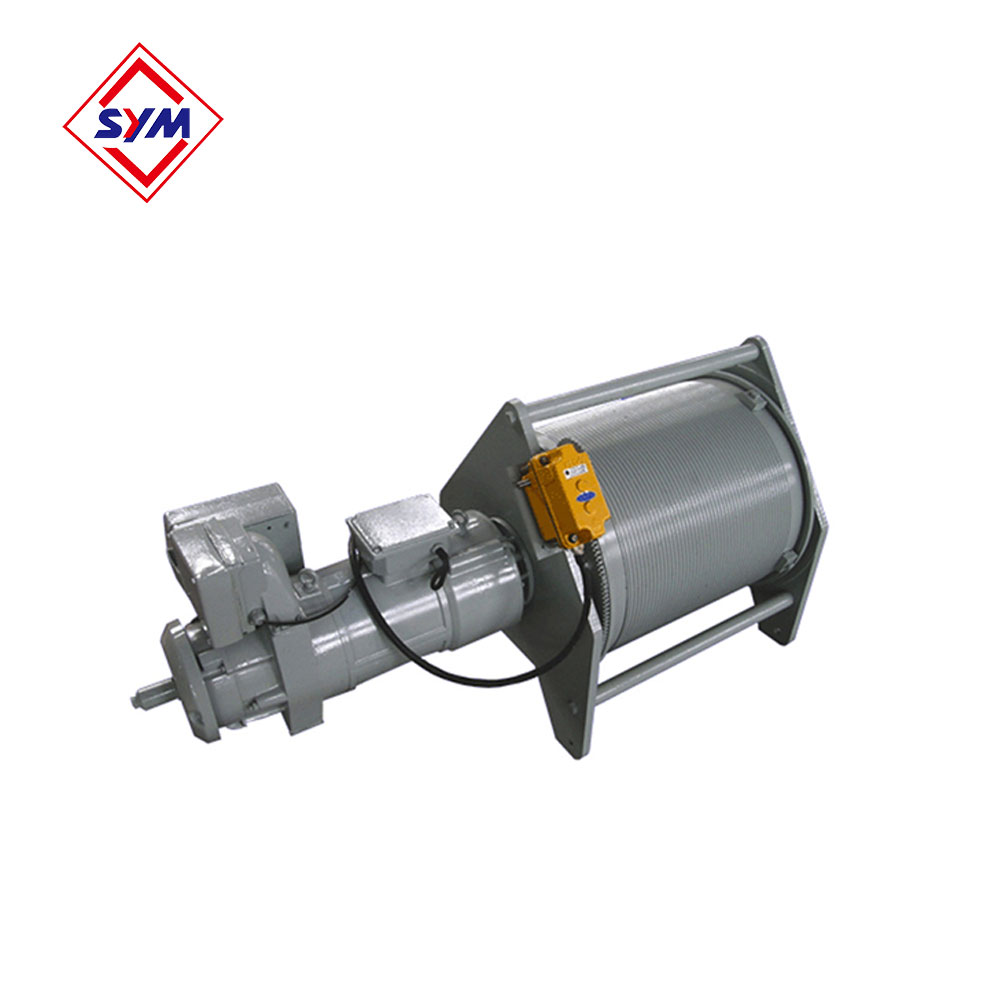

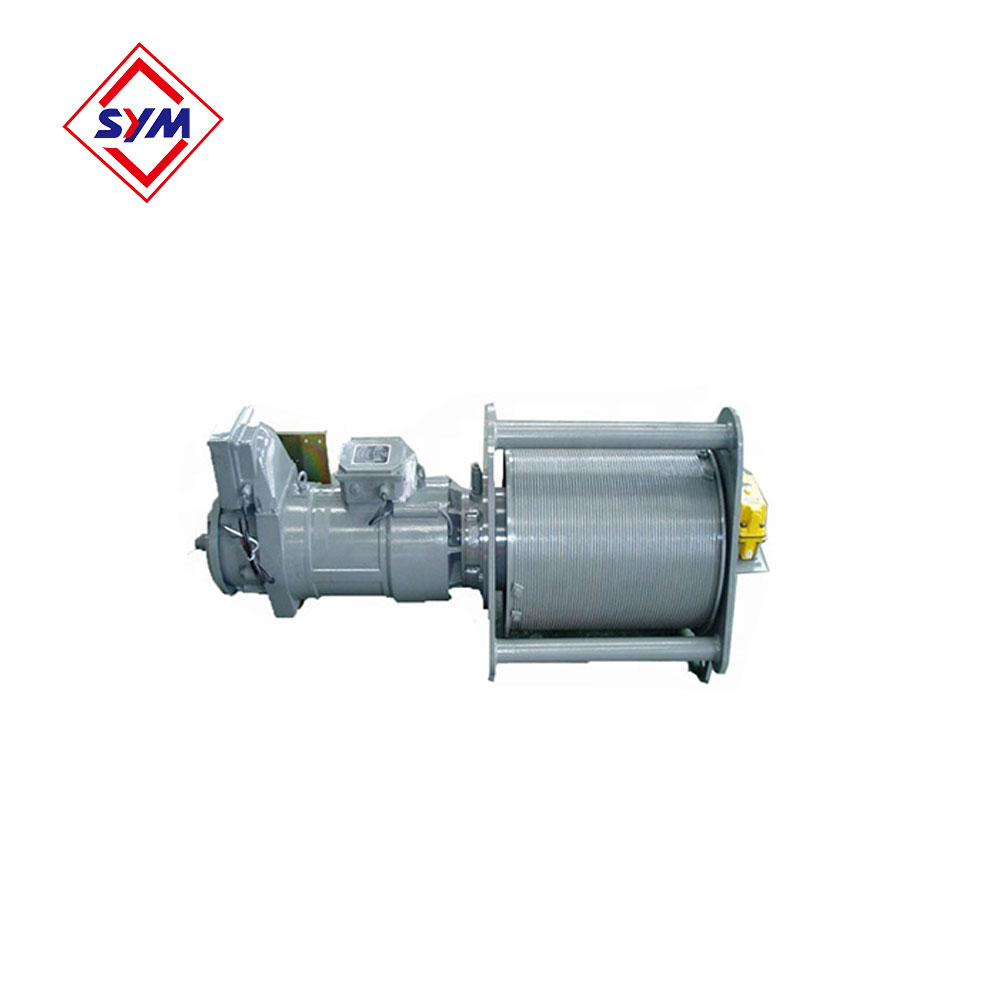

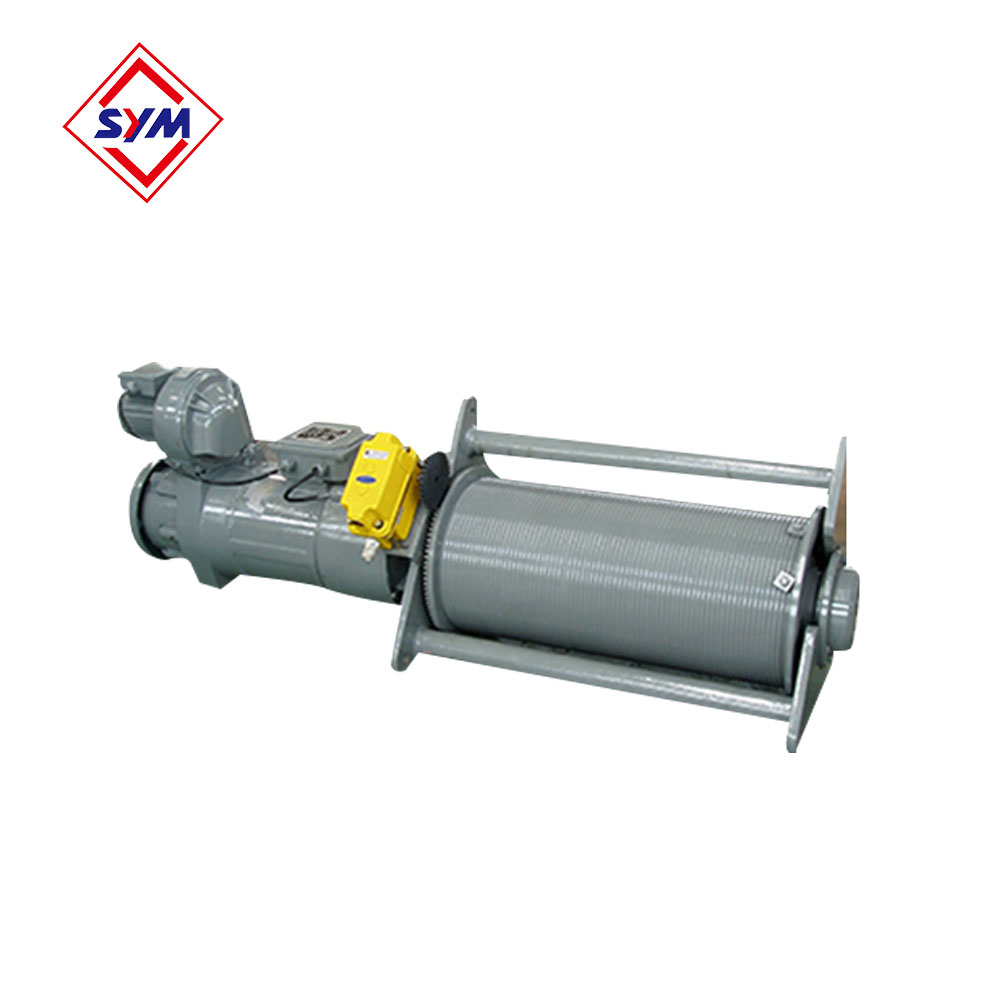

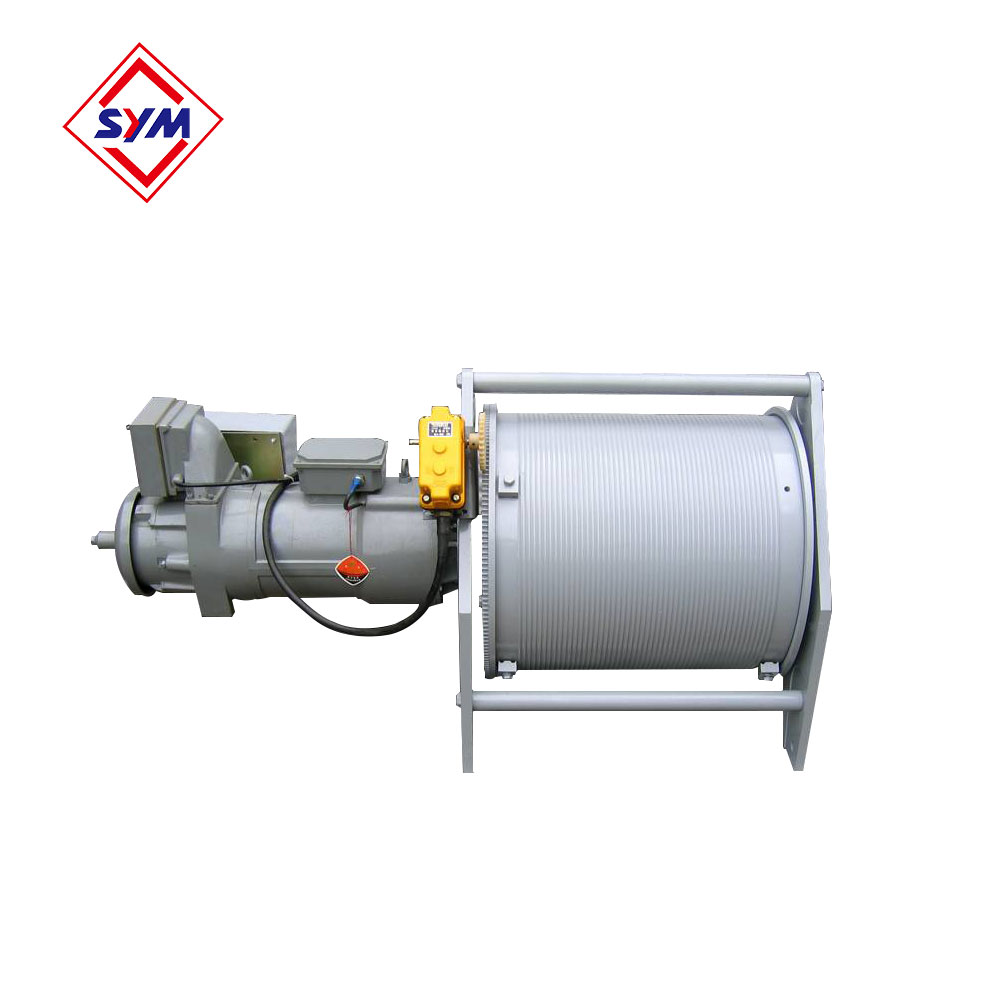

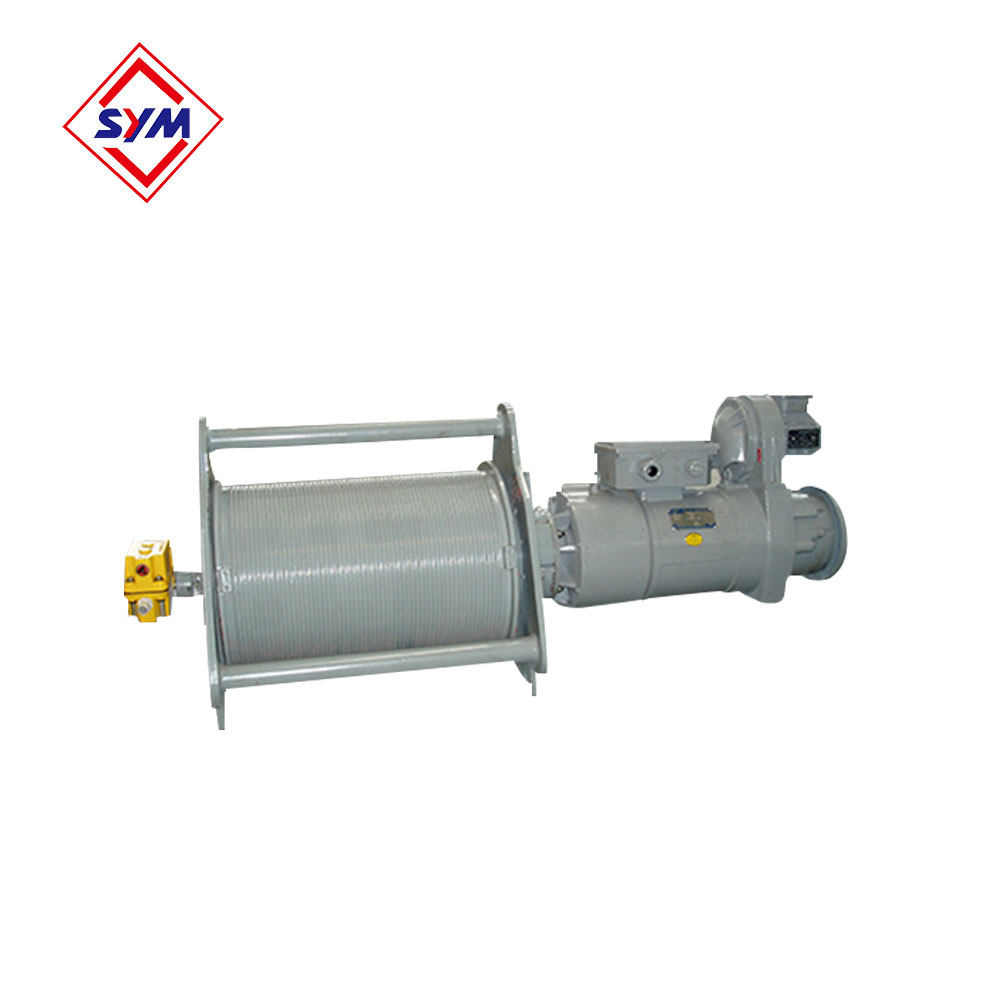

 Trolley Mechanism including drum, trolly motor, reducer and limit switch.

Technical Parameter
Model Rated Power of the Motor (kw) Rated Stalling Torque of Torque Motor (N.m) Rated Single Rope Tension (N) Variable Speed (m/min) Varizble Range (m) Norminal Diameter of Wire Rope (mm) Rated Hoisting Weight of Tower Crane (t)
95JXL2 / 95 4500 0-58 60 φ7.7 8,10
4JXF4 4 /
120JXL / 120 5400 0-63 73 φ8 12
6JXF5 5.5 /
185JXL / 185 7100 0-65 75 φ9 16,18
7.5JXF8 7.5 /
11JXF10 11 / 10000 0-65 83 φ10 20,24
15JXF16 15 / 16000 0-62 85 φ13 25,32
18JXF25 18.5 / 25000 0-32 80 φ13 40,50
24JXF33 24 / 33000 0-25 80 φ16 64
1 2
