Cranes operation in windy conditions could create a potentially dangerous situation. The wind forces exerted on both the crane and the load can affect the strength and stability of the cranes. In order to ensure safety during lifting operations, it is very important for the members in the lifting team to know the wind speed and resistance. The challenge to know the wind speed is the connection between sensor and display. Traditional cabled anemometer wouldn’t work well with the staggering heights among cranes and complex working condition.

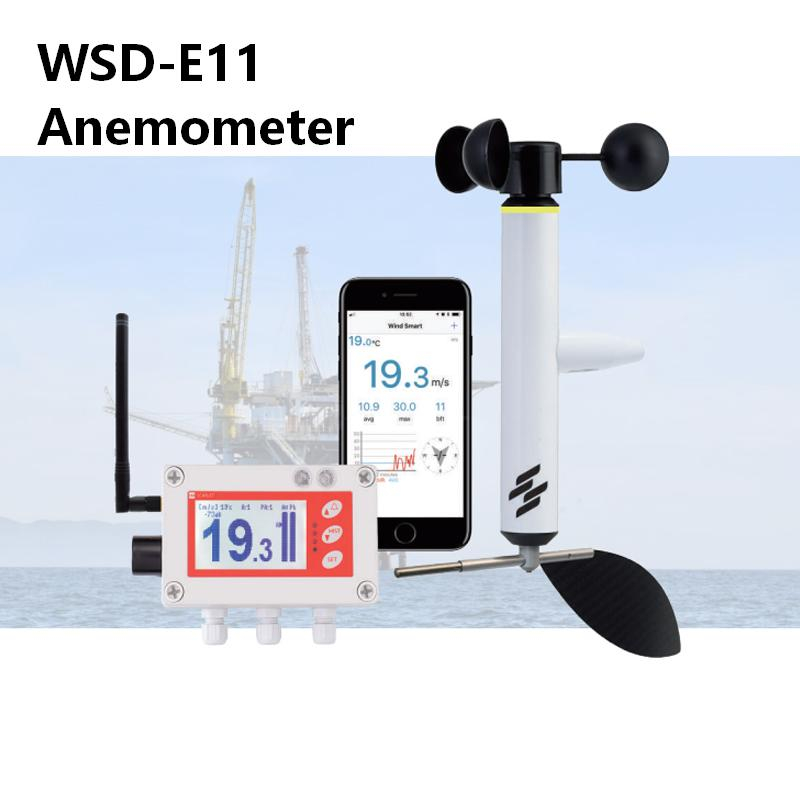

Scarlet Long Range Wireless Explosion Proof Anemometer WSD-E11 adopt state-of-art wireless technology and obtain ATEX certification.
Features‧Certified as EX II 2 G EX ib IIB T4 . Monitor wind condition in hazardous area ‧IP67 Water-proof. Withstands harsh environments. ‧Smartphone connectivity via bluetooth and using Windsmart iOS/Android App ‧Long wireless transmission range. Up to 400m/1300m(XB model only) (2000m with additional external antenna) ‧4 years sensor battery life. ‧Integrated alarm & pre-alarm warning lights ‧Build-in audible alarm ‧4 programmable contact relay outputs ‧Backlighted graphic LCD with large digits | Functions‧Real time wind speed and direction ‧Bar graph of wind gust in the last 2 minutes ‧Temperature ‧4 programmable contact relay outputs ‧4-20 mA industrial outputs, allows external devices connectivity ‧8 hours of wind speed data on history graph ‧Multiple display units connect to one sensor, synchronized monitoring |
| Specification | |
| Wind Speed Measurement Range | 0.3…50 m/s |
| Wind Speed Accuracy | +/- 3 % |
| Wind Speed Resolution | 0.1 m/s |
| Units of Measurement | m/s, km/h, knots, mph, Bf |
| Waterproof Rating | IP67 |
| Wind Direction Measurement Range | 0-360°, no blank sector, contactless magnetic measuring principle |
| Temperature Measurement Range | -30…55°C |

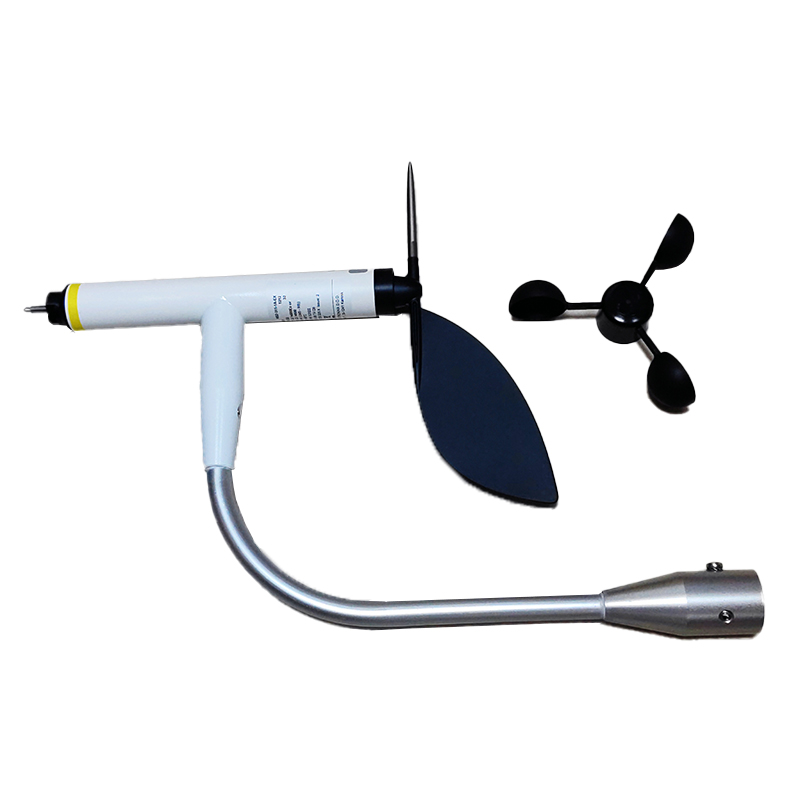

| Dimensions - Sensor | height 210 mm; diameter ( cup to cup ) 120mm |

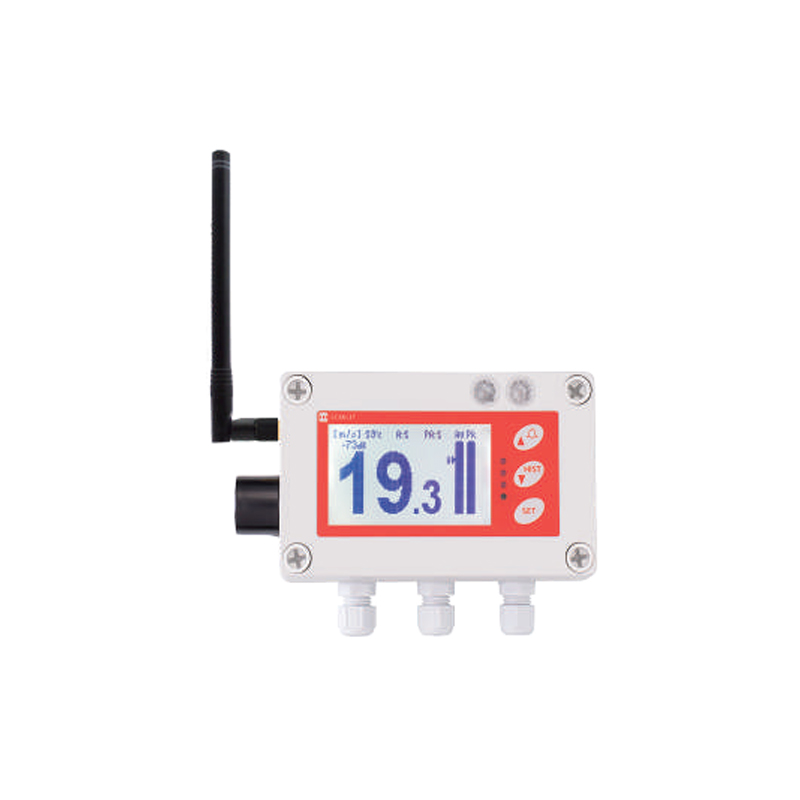

| Dimensions - Receiver | 150 x 80 x 55 mm |
| Mounting | Self-Leveling Mounting Bracket |
