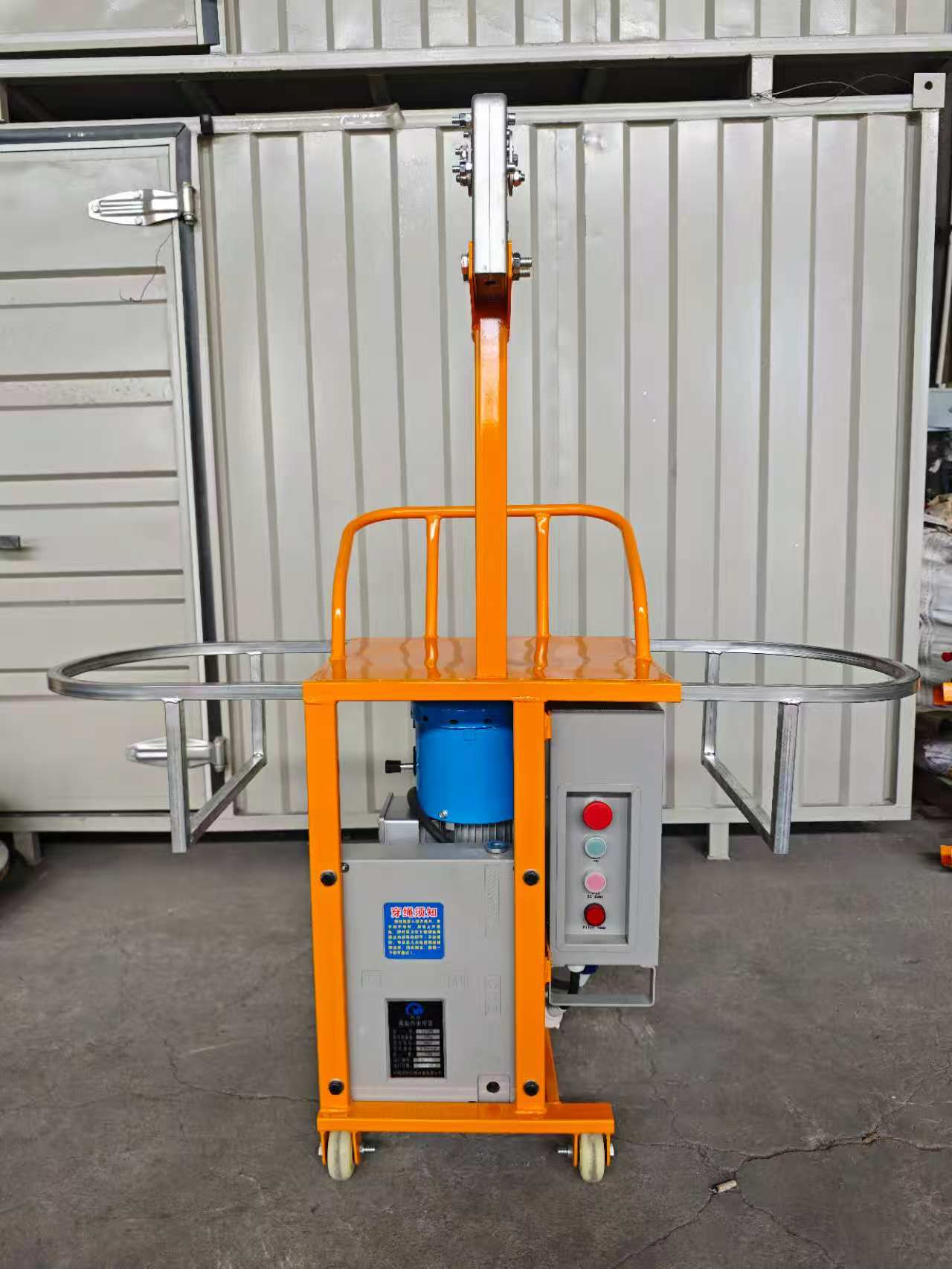

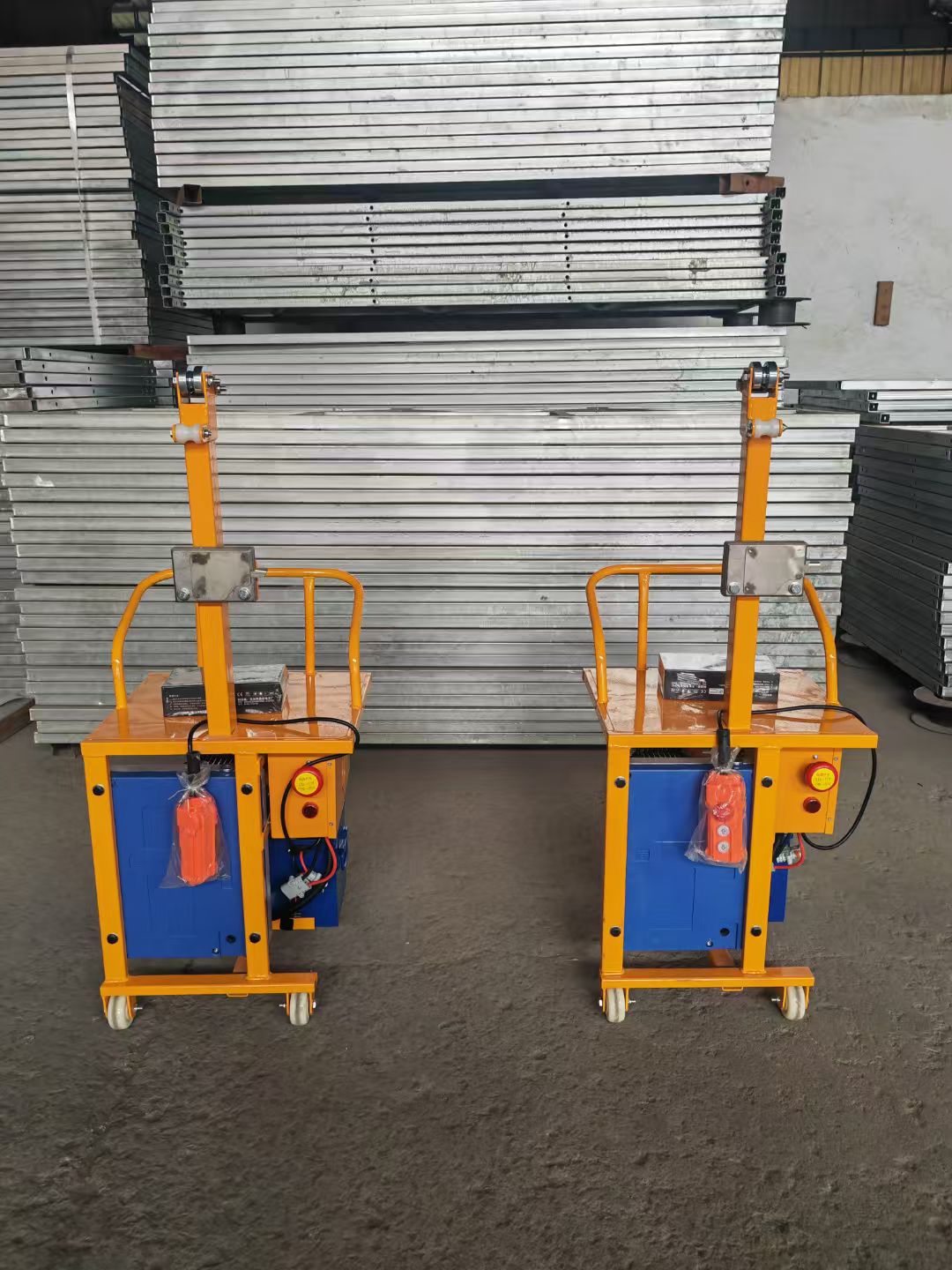

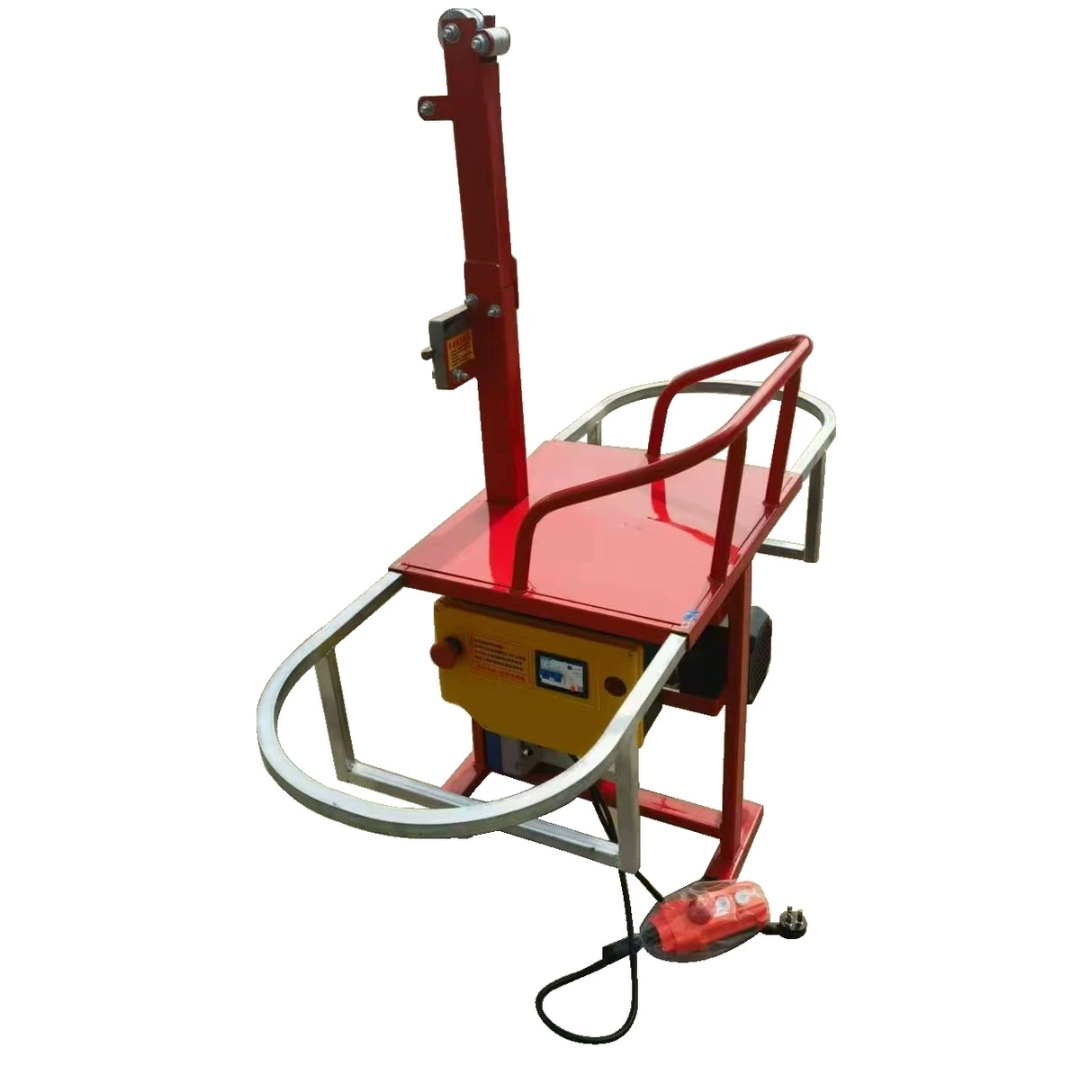

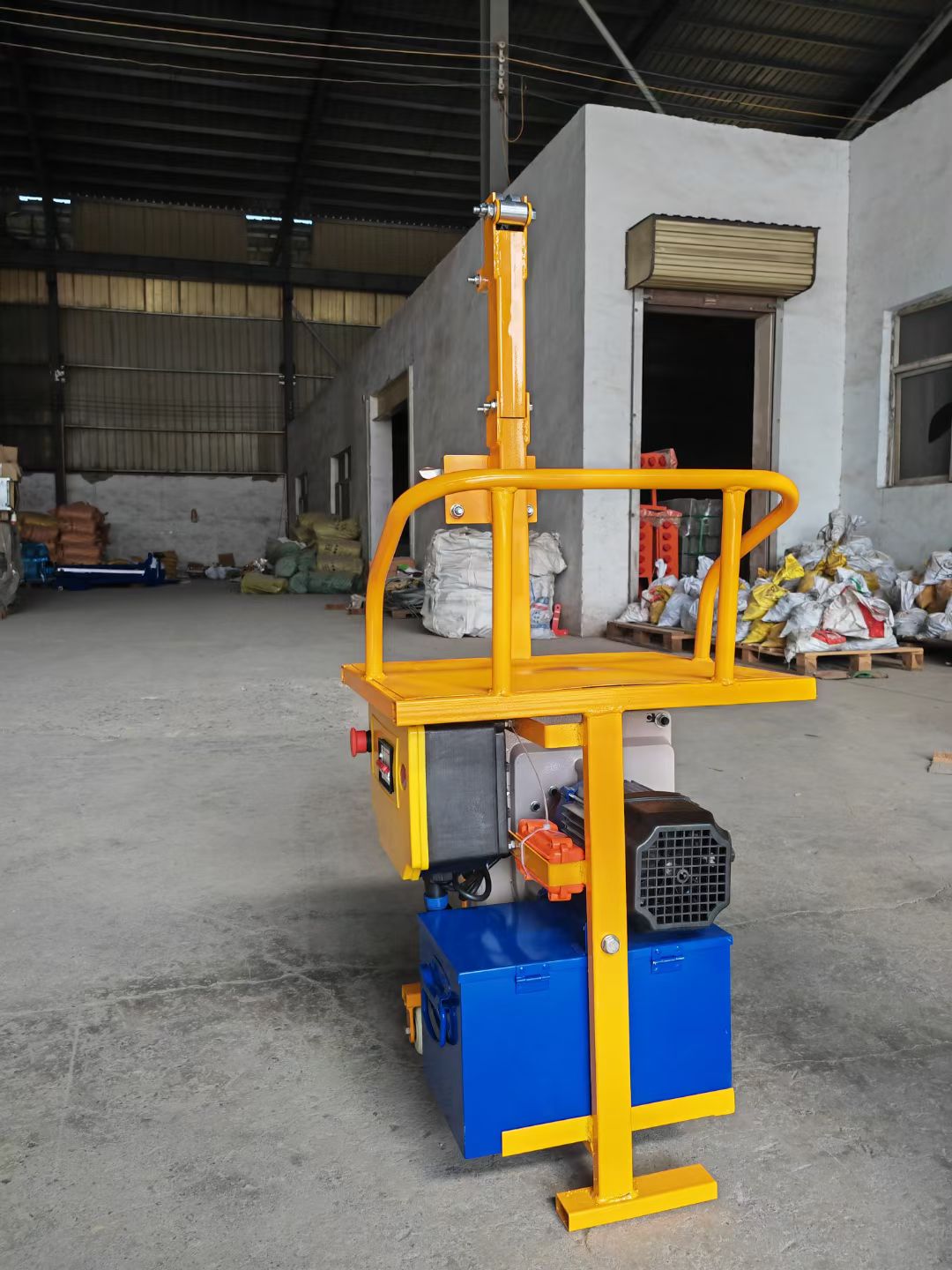

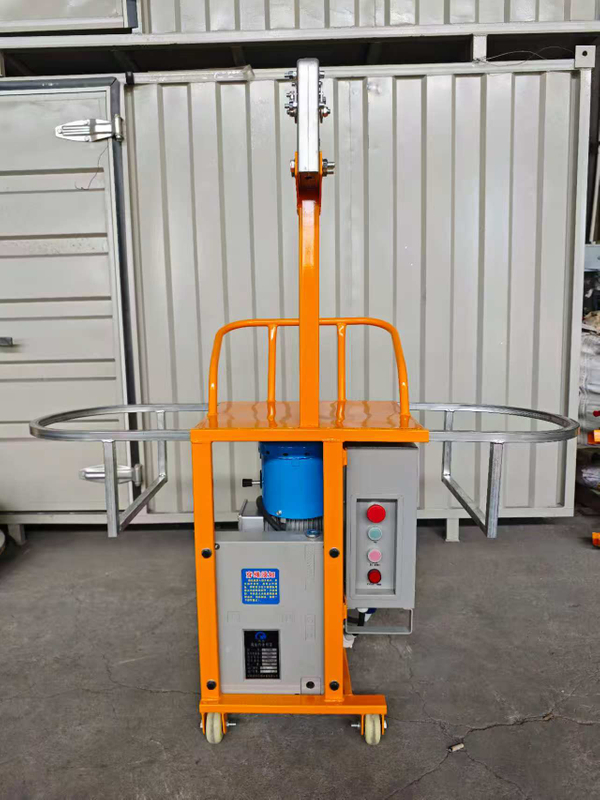

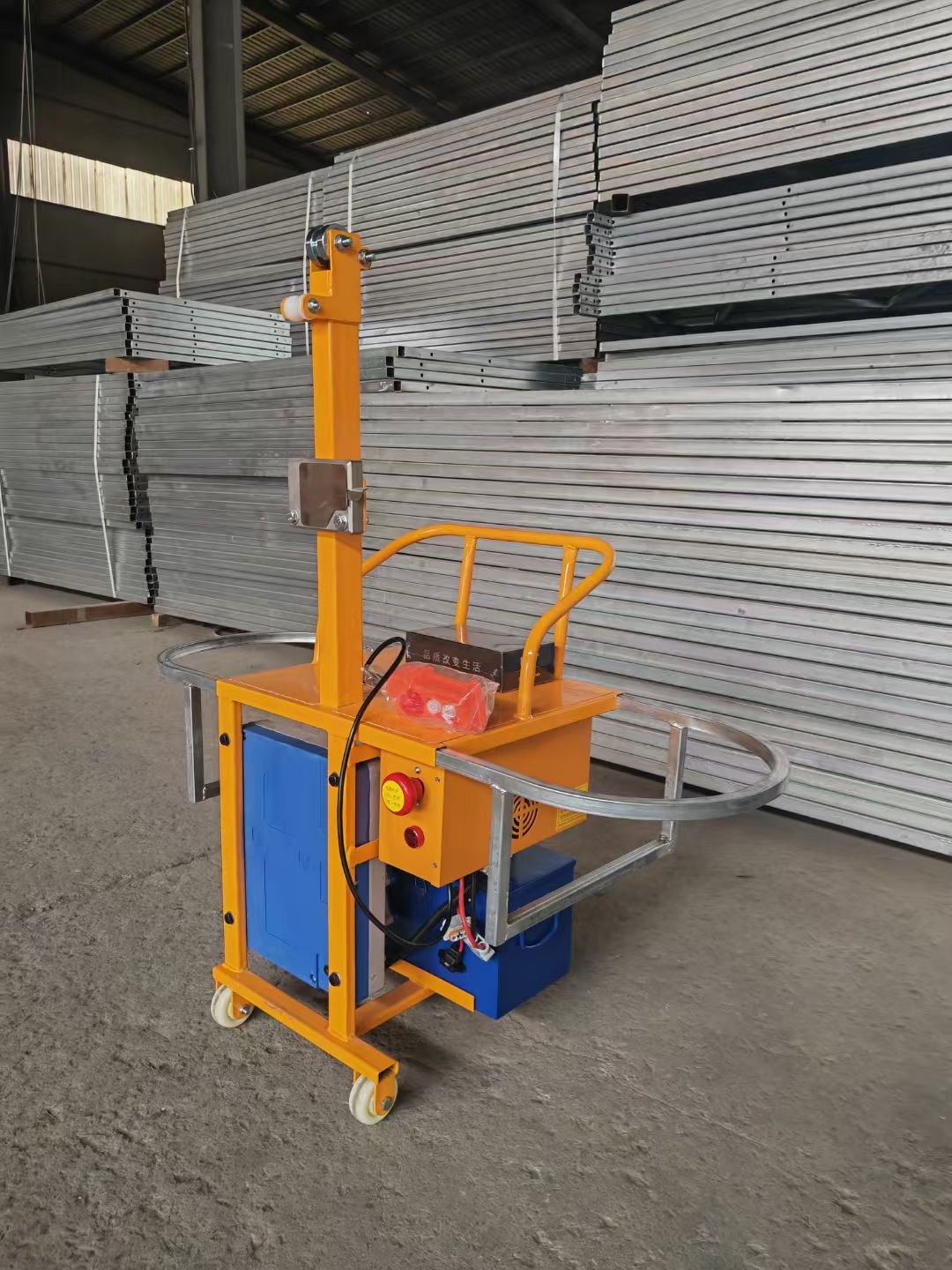

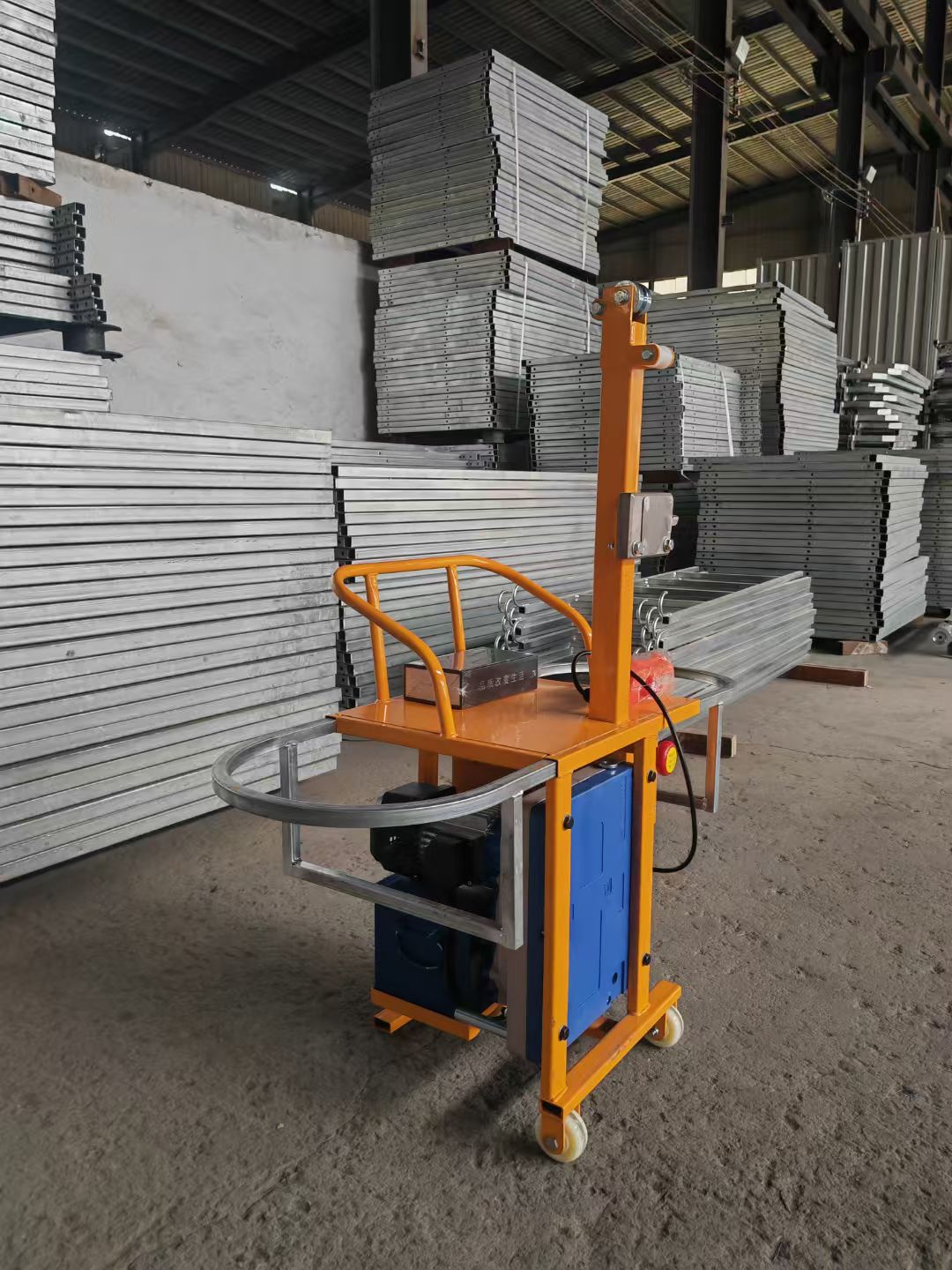

High Rise Building Window Cleaning Equipment Electric Cradle Single Person Suspended Platform

Availability:
Quantity:

The hanging basket is a construction machinery for high-altitude operations in construction projects, used for curtain wall installation and exterior wall cleaning. The hanging basket is a new type of high-altitude operation equipment that can replace traditional scaffolding, reduce labor intensity, improve work efficiency, and can be reused. The use of construction hanging baskets has gradually become a trend, and has been recognized in high-altitude operations such as exterior wall construction, curtain wall installation, insulation construction, and exterior wall maintenance and cleaning of high-rise and multi-story buildings. It can also be used for operations in tanks, bridges, dams and other projects. Using this product, scaffolding is unnecessary. It reduces construction costs, construction costs, and greatly improves work efficiency. The hanging basket is flexible to operate, easy to move, convenient and practical.

Lifting height 100m
plartform dimentions 500*500*1200mm
Item weight 48KG
workload/capacity 250KG
Lifting speed 14m/min
Platform material aluminum alloy
Steel rope 2*100m 8.3mm Dia.
Cable 1
Motor power 1500kw
Motor Voltage, quantity of phases 220V, single phase
Safety lock 1
Frame 1
