| Quantity: | |
|---|---|
25LVF3, 33LVF15
SYM, SCM, YONGMAO, ZOOMLION, JIUHE
8431499900

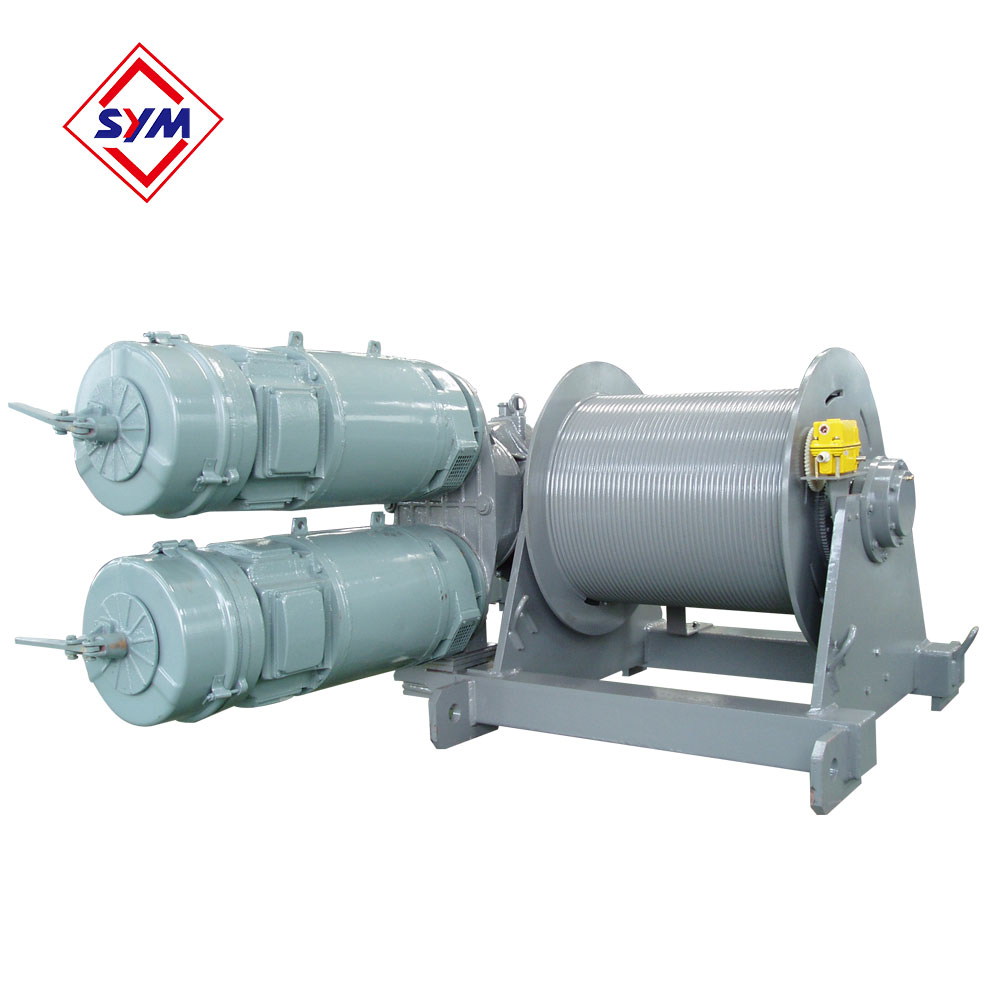

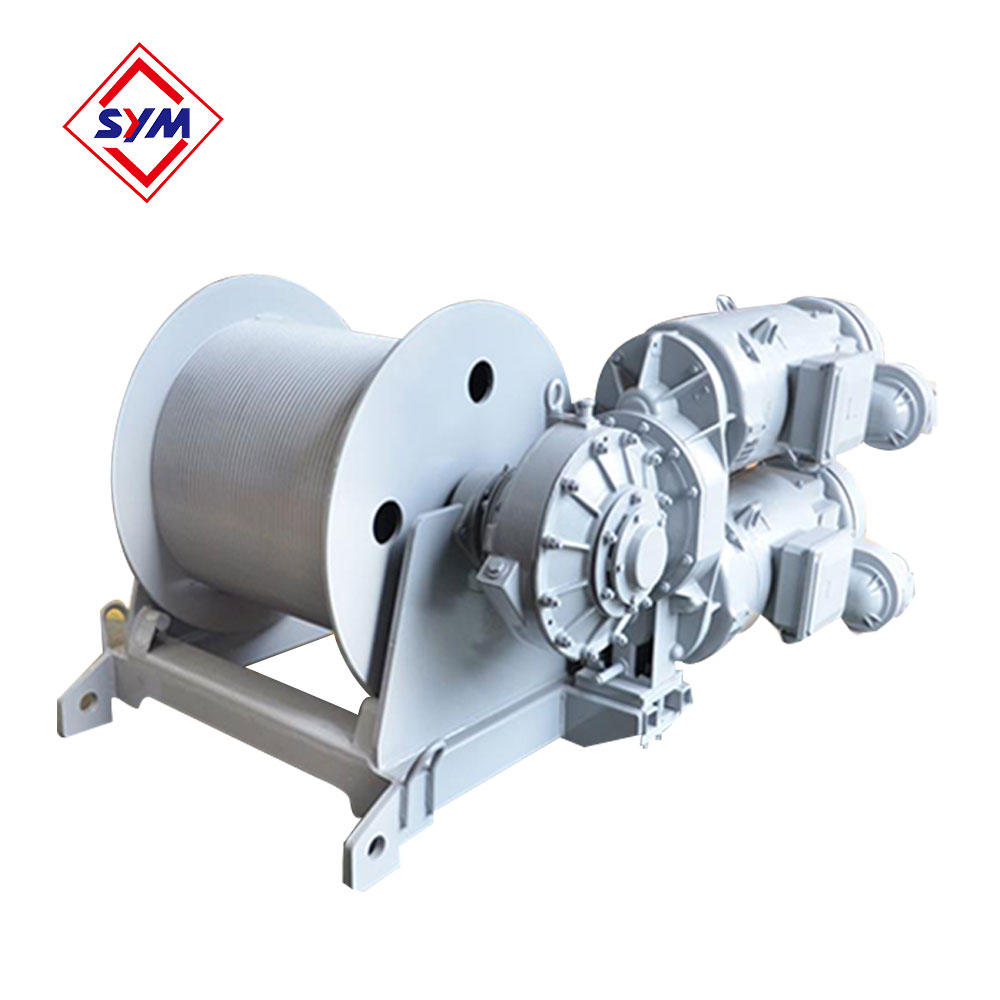

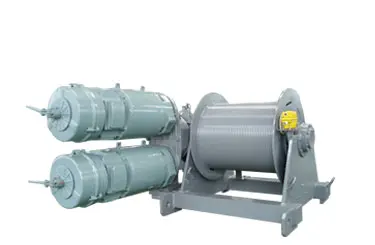

RCS Hoist Mechanism
| Technical Parameters | |||||
| Model | 45RCS20 | 55RCS25 | 70RCS25 | 70RCS30 | 70RCS40 |
| Rated Single Rope Tension KN | 20 | 25 | 25 | 30 | 40 |
| Magnification | 4 | 4 | 4 | 4 | 4 |
| Rated Power of the Motor (KW) | 33 | 41 | 51.5 | 51.5 | 51.5 |
| Frequency (Hz) | 50 | 50 | 50 | 50 | 50 |
| Hoisting Speed (m/min) | 20/40 | 21/42 | 25/50 | 12/6 | 15/30 |
| Hoisting Capacity (t) | 8/4 | 10/5 | 10/5 | 12/6 | 16/8 |
| Rope Capacity (m) | 328 | 500 | 550 | 525 | 550 |
| Nominal Diameter of Wirerope (mm) | 13 | 14 | 14 | 18 | 20 |
 |  | ||||
LVF Hoist Mechanism
| Technical Parameters | ||||
| Model | 25LVF13 | 33LVF15 | ||
| Rated Single Rope Tension (KN) | 13 | 15 | ||
| Magnification | 2 | 4 | 2 | 4 |
| Rated Power of the Motor (KW) | 18.5 | 24 | ||
| Working Frequency (Hz) | 6-50-100 | 6-50-100 | 6-50-100 | 6-50-100 |
| Hoisting Speed (m/min) | 4.5-37-75 | 2.2-18-37 | 5-40-80 | 2.5-20-40 |
| Hoisting Capacity (t) | 2.5-2.5-1.25 | 5-5-2.5 | 3-3-1.5 | 6-6-3 |
| Rope Capacity (m) | 360 | 410 | ||
| Nominal Diameter of Wirerope (mm) | 10 | 12 | ||
 |  | |||
PC Hoist Mechaniam
| Technical Parameters | |||
| Model | 25PC13 | 33PC15 | 40PC20 |
| Rated Single Rope Tension (KN) | 13 | 15 | 20 |
| Magnification | 4 | 4 | 4 |
| Rated Power of the Motor (KW) | 18/18/3.5 | 24/24/5.5 | 30 |
| Working Frequency (Hz) | 50 | 50 | 50 |
| Hoisting Speed (m/min) | 33.5-17-3 | 37.5-19-3 | 35-17.5-3 |
| Hoisting Capacity (t) | 2.5-2.5-5 | 3-6-6 | 2-4-8 |
| Rope Capacity (m) | 360 | 400 | 440 |
| Nominal Diameter of Wirerope (mm) | 10 | 12 | 14 |
 |  | ||
RCS Hoist Mechanism
| Technical Parameters | |||||
| Model | 45RCS20 | 55RCS25 | 70RCS25 | 70RCS30 | 70RCS40 |
| Rated Single Rope Tension KN | 20 | 25 | 25 | 30 | 40 |
| Magnification | 4 | 4 | 4 | 4 | 4 |
| Rated Power of the Motor (KW) | 33 | 41 | 51.5 | 51.5 | 51.5 |
| Frequency (Hz) | 50 | 50 | 50 | 50 | 50 |
| Hoisting Speed (m/min) | 20/40 | 21/42 | 25/50 | 12/6 | 15/30 |
| Hoisting Capacity (t) | 8/4 | 10/5 | 10/5 | 12/6 | 16/8 |
| Rope Capacity (m) | 328 | 500 | 550 | 525 | 550 |
| Nominal Diameter of Wirerope (mm) | 13 | 14 | 14 | 18 | 20 |
| | ||||
LVF Hoist Mechanism
| Technical Parameters | ||||
| Model | 25LVF13 | 33LVF15 | ||
| Rated Single Rope Tension (KN) | 13 | 15 | ||
| Magnification | 2 | 4 | 2 | 4 |
| Rated Power of the Motor (KW) | 18.5 | 24 | ||
| Working Frequency (Hz) | 6-50-100 | 6-50-100 | 6-50-100 | 6-50-100 |
| Hoisting Speed (m/min) | 4.5-37-75 | 2.2-18-37 | 5-40-80 | 2.5-20-40 |
| Hoisting Capacity (t) | 2.5-2.5-1.25 | 5-5-2.5 | 3-3-1.5 | 6-6-3 |
| Rope Capacity (m) | 360 | 410 | ||
| Nominal Diameter of Wirerope (mm) | 10 | 12 | ||
| | | |||
PC Hoist Mechaniam
| Technical Parameters | |||
| Model | 25PC13 | 33PC15 | 40PC20 |
| Rated Single Rope Tension (KN) | 13 | 15 | 20 |
| Magnification | 4 | 4 | 4 |
| Rated Power of the Motor (KW) | 18/18/3.5 | 24/24/5.5 | 30 |
| Working Frequency (Hz) | 50 | 50 | 50 |
| Hoisting Speed (m/min) | 33.5-17-3 | 37.5-19-3 | 35-17.5-3 |
| Hoisting Capacity (t) | 2.5-2.5-5 | 3-6-6 | 2-4-8 |
| Rope Capacity (m) | 360 | 400 | 440 |
| Nominal Diameter of Wirerope (mm) | 10 | 12 | 14 |
| | ||
