WR-3 Plus
scarlet
Cranes operation in windy conditions could create a potentially dangerous situation. The wind forces exerted on both the crane and the load can affect the strength and stability of the cranes. In order to ensure safety during lifting operations, it is very important for the members in the lifting team to know the wind speed and resistance. The challenge to know the wind speed is the connection between sensor and display. Traditional cabled anemometer wouldn’t work well with the staggering heights among cranes and complex working condition.

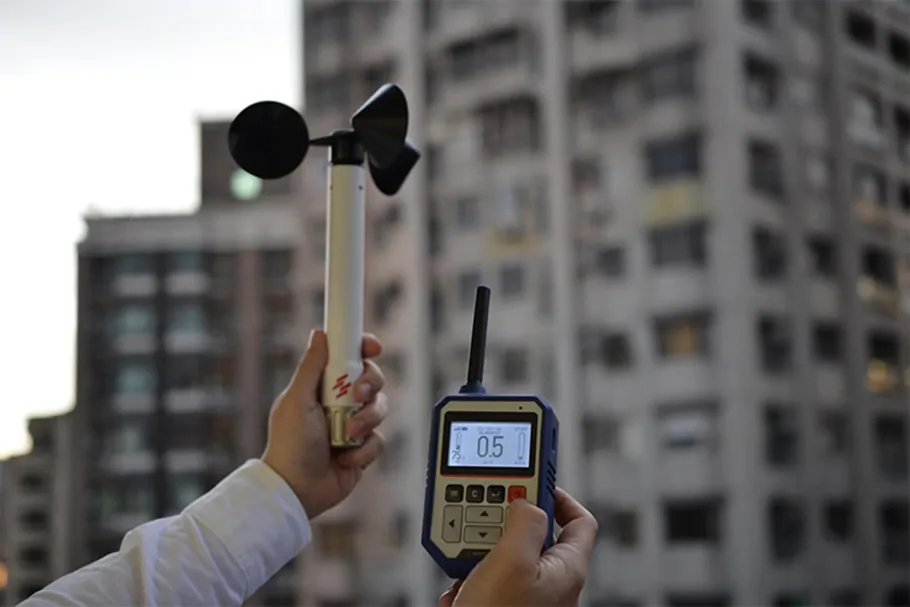

WR-3 Plus Wireless Anemometer offers a trusted and stable wind measurement solution.
Features - Max 500m ultra-long wireless transceiver - Audible & visual wind speed alarm - Data recording up to 1 year - Wind speed, temperature, air pressure measurements - Max 3 years sensor battery life - IP67 waterproof & impact resistant - Fast & secure magnetic installation kit | Application Areas - Cranes & Construction - Marine, Ports& Offshore - Film Production & Outdoor Entertainment - Scaffolding & Temporary Structure - Rigging & Communications Industry - Wind Farm & Turbine. |
| Instant Wind Speed Alarm WR-3 Plus displays the live wind speed value in selectable measurement units (m/s, knots, MPH, km/hr) Users can set a wind speed warning limit on based on local operation safety standards. An audible and visual alarm will be trigger when the limit has beenreached. Each sensor has a unique wireless address that can connect to several displays to notify multiple stakeholders on-site. WR-3 Plus capture and storage wind speed, temperature, air pressure measurements.64MB built-in memory and outstanding battery life supports up to 1 year of continuous data recording. (based on10s logging interval, adjustable: 2s, 5s, 10s, 1min, 5 mins, 10 mins, 60 mins)The recorded data can be easily export in Excel format further analysis. | |
| |
| Graphical Display The large LCD backlit display with user-friendly interface clearly indicates live weather data in various units of measurement. Users can view hourly wind records and historical bar charts from the past 12 hours on different pages. | |
|
| Wireless Sensor | |
| Frequency | 868MHz(default),915MHz |
| Distance | Max 500m* (depends on the applied environment) |
| Data Rate | Every 2 seconds |
| Power Supply | 3.6V 18505 Lithium battery x1 |
| Waterproof Rating | IP67 |
| Weight | 406g |
| Dimension | 262.5 x 183.5 x32mm |
| Receiver Datalogger | |
| Receiver Buzzer | > 80dB |
| Built-in Memory | 64MB |
| Output | .xlxs, .xls |
| Data Logger | wind speed, temperature, atmospheric pressure |
| Logging Interval | 2s, 5s, 10s, 1min, 5 mins, 10 mins, 60 mins |
| Power Supply | 1.5V AA battery x3, Micro USB port |
| Dimension | 189.6 x 75.6 x 36.3mm |
| Weight | 205g |
SYM Hoist&Tower Crane Equipment is the professional crane and lift platform manufacturer in China . We supply all kinds of original spare parts for tower crane. Our Advantages 1) 100% originals parts 2) More 20+ experience 3) Protect the rights of our clients, from pre-sales to after-sales process FAQ Q1: Are you a trading company or a factory?
Q7: What info should I provide with the inquiry? A7: Quantity,Model |
