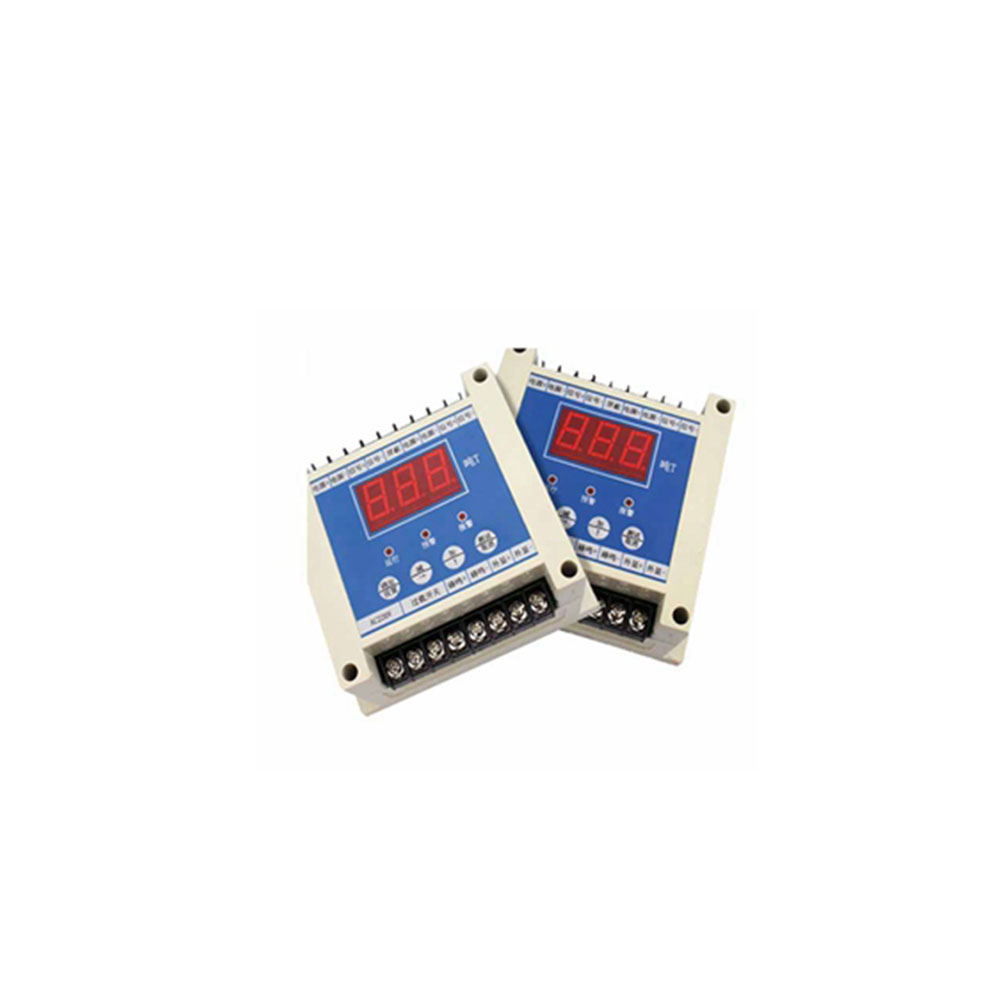

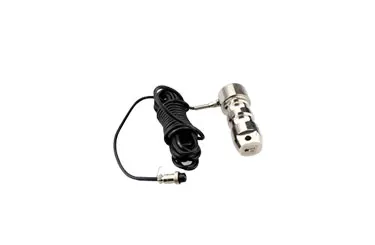

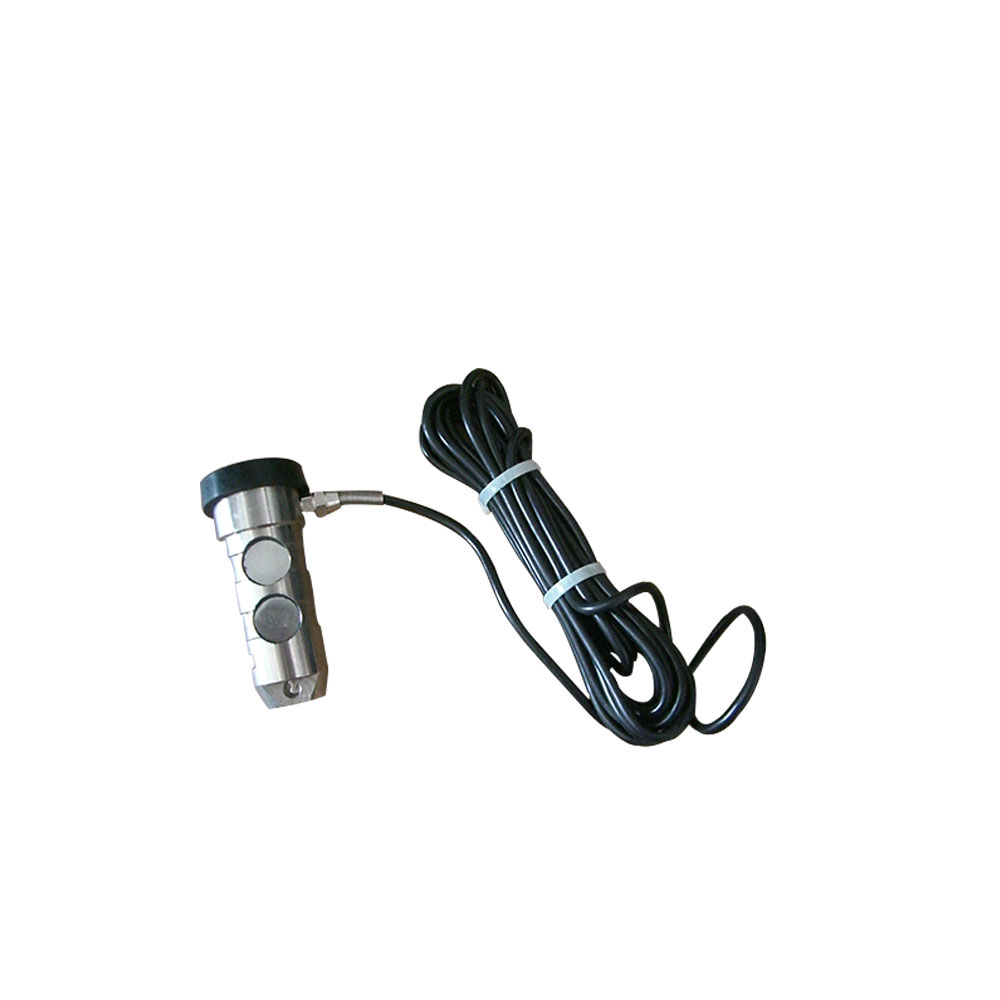

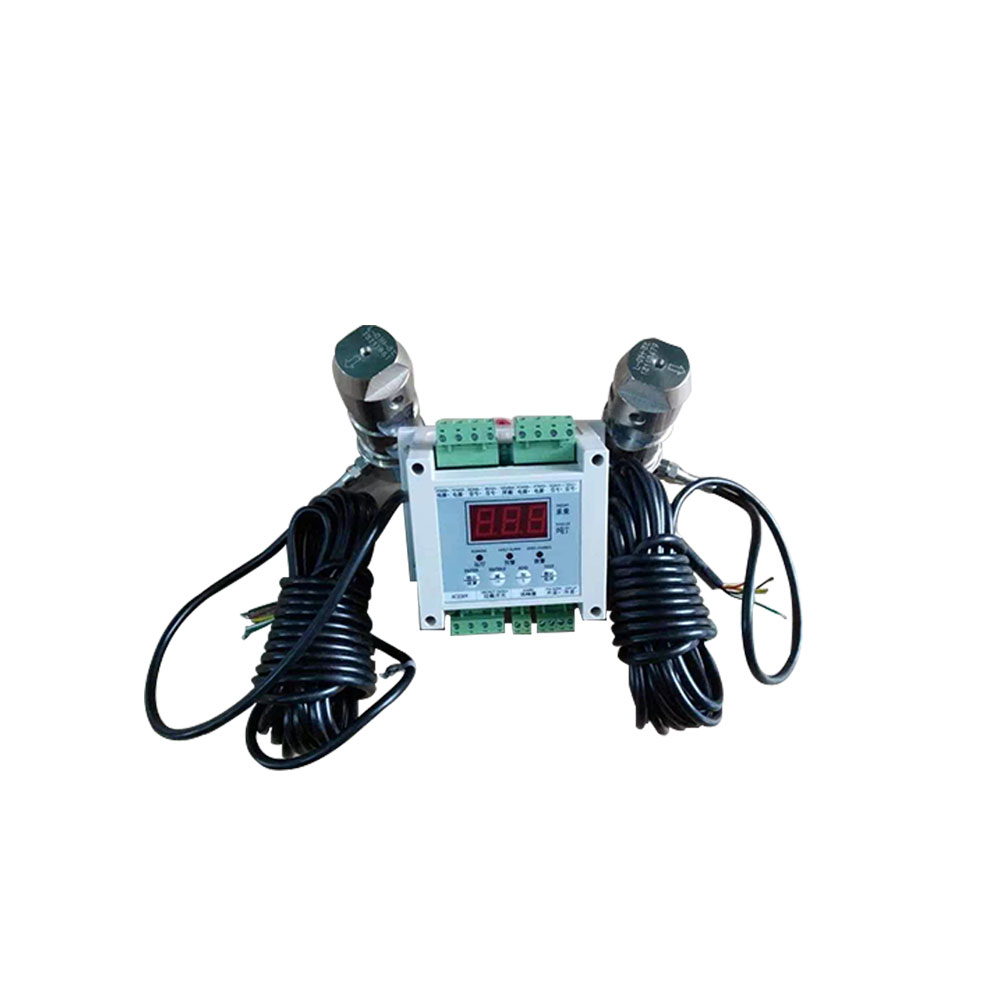

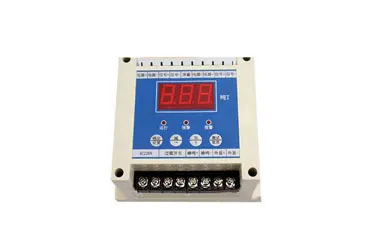

The overload limiter measures the weight of the load by means of the weight sensor. The instrument displays the actual load in real time. When the load reaches the set value of its rated load, it sends out the sound and light alarm signal and gives the switch output. The whole system consists of sensors, connecting cables, microcomputer host and so on.
Project | Parameter | Project | Parameter |
Voltage Rating(V) | 5W | Load Rating | 2T |
Display mode | 6 Digital Display | Sensor Overload Capacity | 150% |
Working Voltage | AC180-260V | Sensor Operating Voltage | DC5~12V |
Working Temperature | -20~60℃ | Sensor Sensitivity | 1.0000Mv/v |
Working Humidity | 95% | Sensor Protection Grade | IP65 |
Comprehensive Error | ≤1%F.S | Insulation Impedance | ≥5000MΩ |
Alarm Putout | AC250V/7A | Installation | Card Slot |
Buzzer | ≥90dB | Movement Error | ≤1%F.S |
The overload limiter measures the weight of the load by means of the weight sensor. The instrument displays the actual load in real time. When the load reaches the set value of its rated load, it sends out the sound and light alarm signal and gives the switch output. The whole system consists of sensors, connecting cables, microcomputer host and so on.
Project | Parameter | Project | Parameter |
Voltage Rating(V) | 5W | Load Rating | 2T |
Display mode | 6 Digital Display | Sensor Overload Capacity | 150% |
Working Voltage | AC180-260V | Sensor Operating Voltage | DC5~12V |
Working Temperature | -20~60℃ | Sensor Sensitivity | 1.0000Mv/v |
Working Humidity | 95% | Sensor Protection Grade | IP65 |
Comprehensive Error | ≤1%F.S | Insulation Impedance | ≥5000MΩ |
Alarm Putout | AC250V/7A | Installation | Card Slot |
Buzzer | ≥90dB | Movement Error | ≤1%F.S |
