Measurement Ranger ：0 ～ 300T
Measure range: 0 ～ 300T
Adjustable) ：0.1T
Resolving ability: 0.1T 2.2
Measurement Accuracy ：±5%（F.S.）
Combined accuracy: ±5%（F.S.）
Working Conditions :DC24V ± 5%
Electric voltage: DC24V ± 5%
Relative moisture: 90%(20℃)：<±3%（F.S.）
Action error: <±3%（F.S.）：DC24V 5A
Relay contact capacity: DC24V 5A 2.4
Manual presetting of weight, angle and arm length
Alarm Control Function : When the torque reaches 90% of the rated load moment, it gives loud and clear sound and light alarm signal (amber light) When the torque reaches 100% of the rated load moment, it gives loud and clear sound and light alarm signal (red light). The alarm stops only when the torque is lower than 100% of the rated load moment. When the torque reaches 110% of the rated load moment, it sends out overload control signal and working together with the control circuit to stop the excavator from moving towards dangerous directions (for instance, lifting, increasing radius / range). Movements toward safety directions are allowed (for instance, lowering). Working together with the control circuit of the excavator to stop upward movement but allow downward movement.

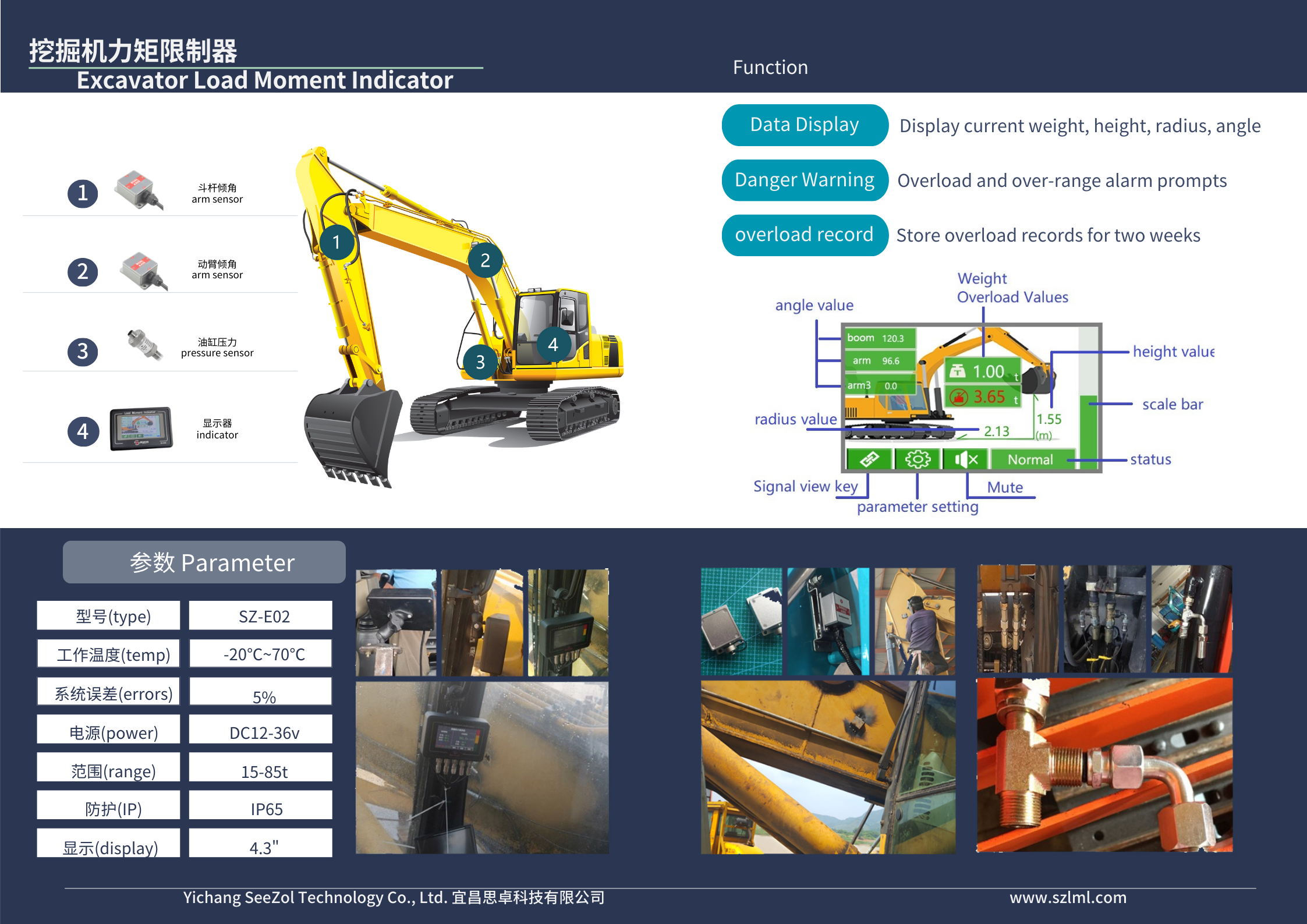

System Composition

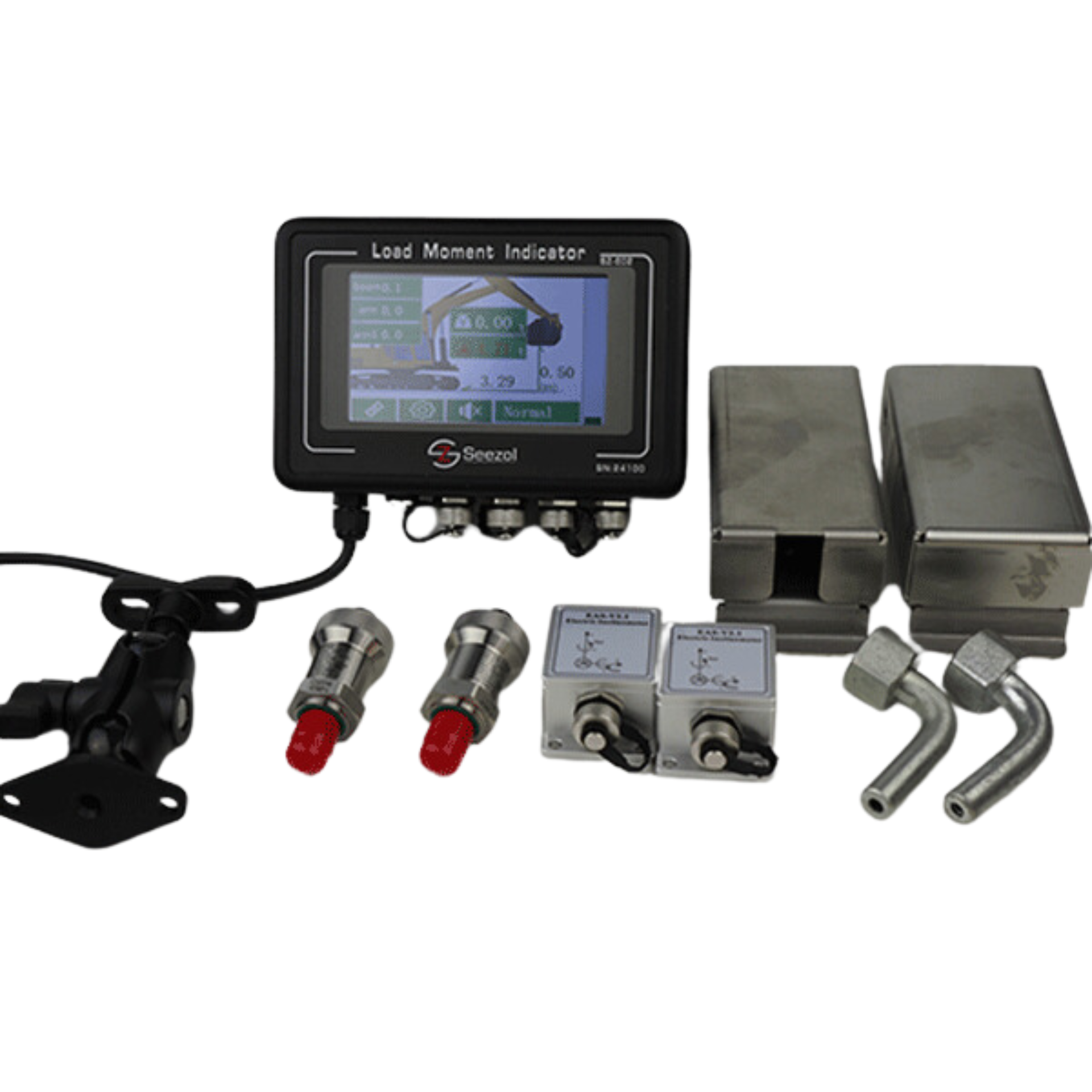

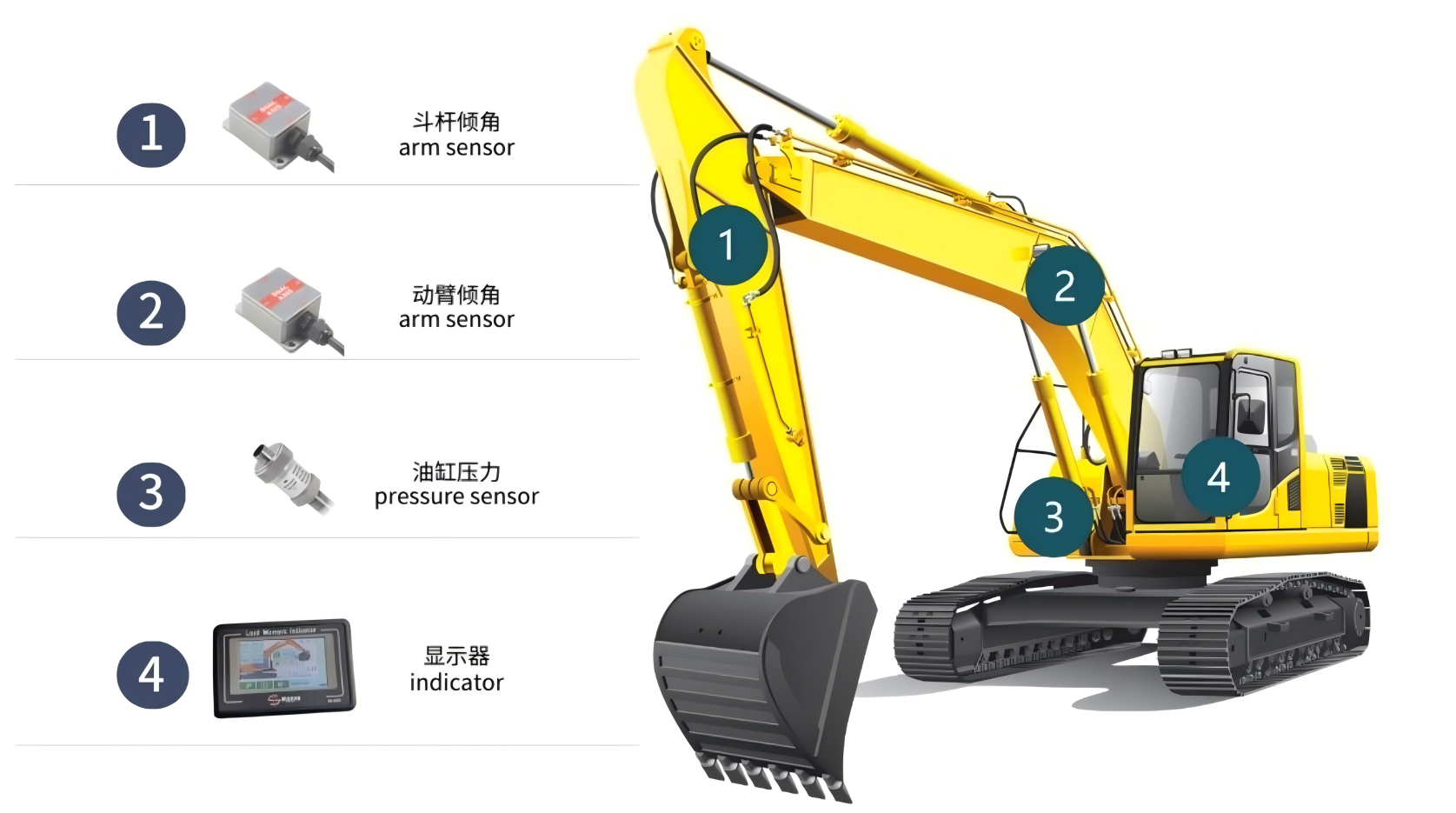

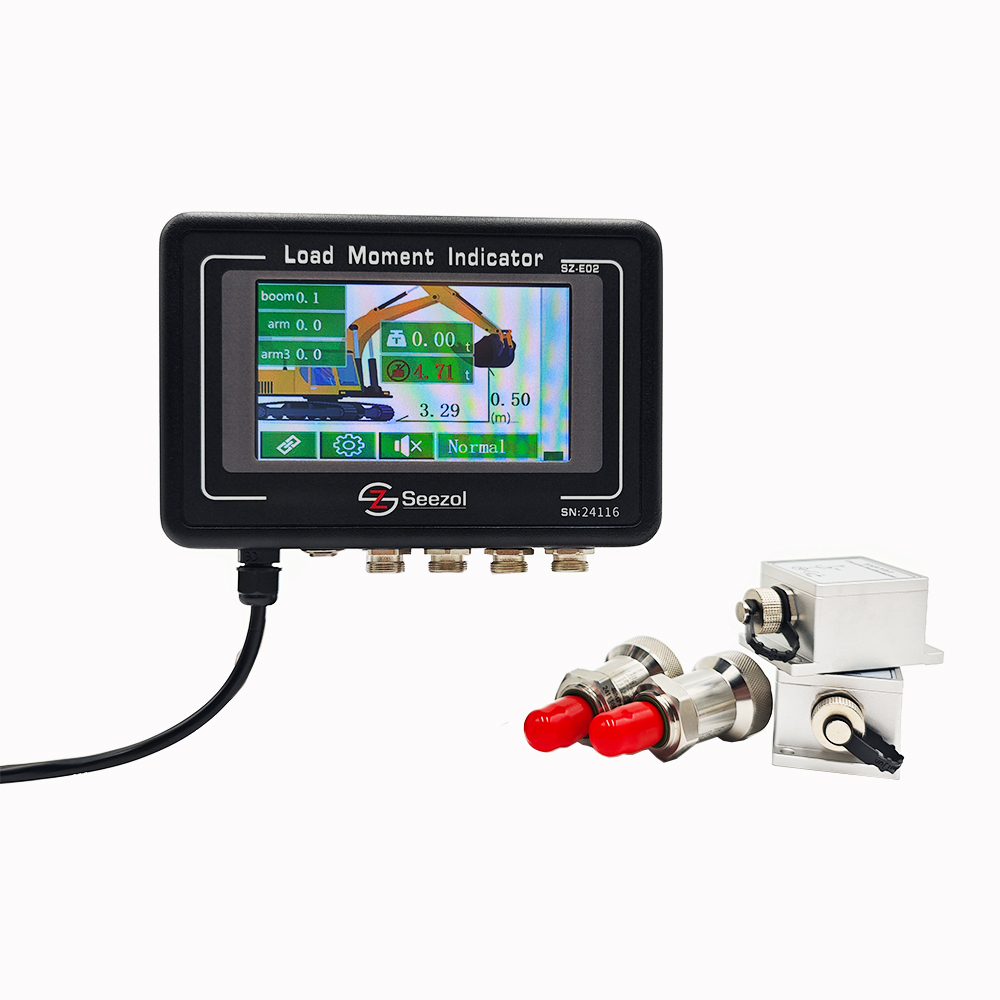

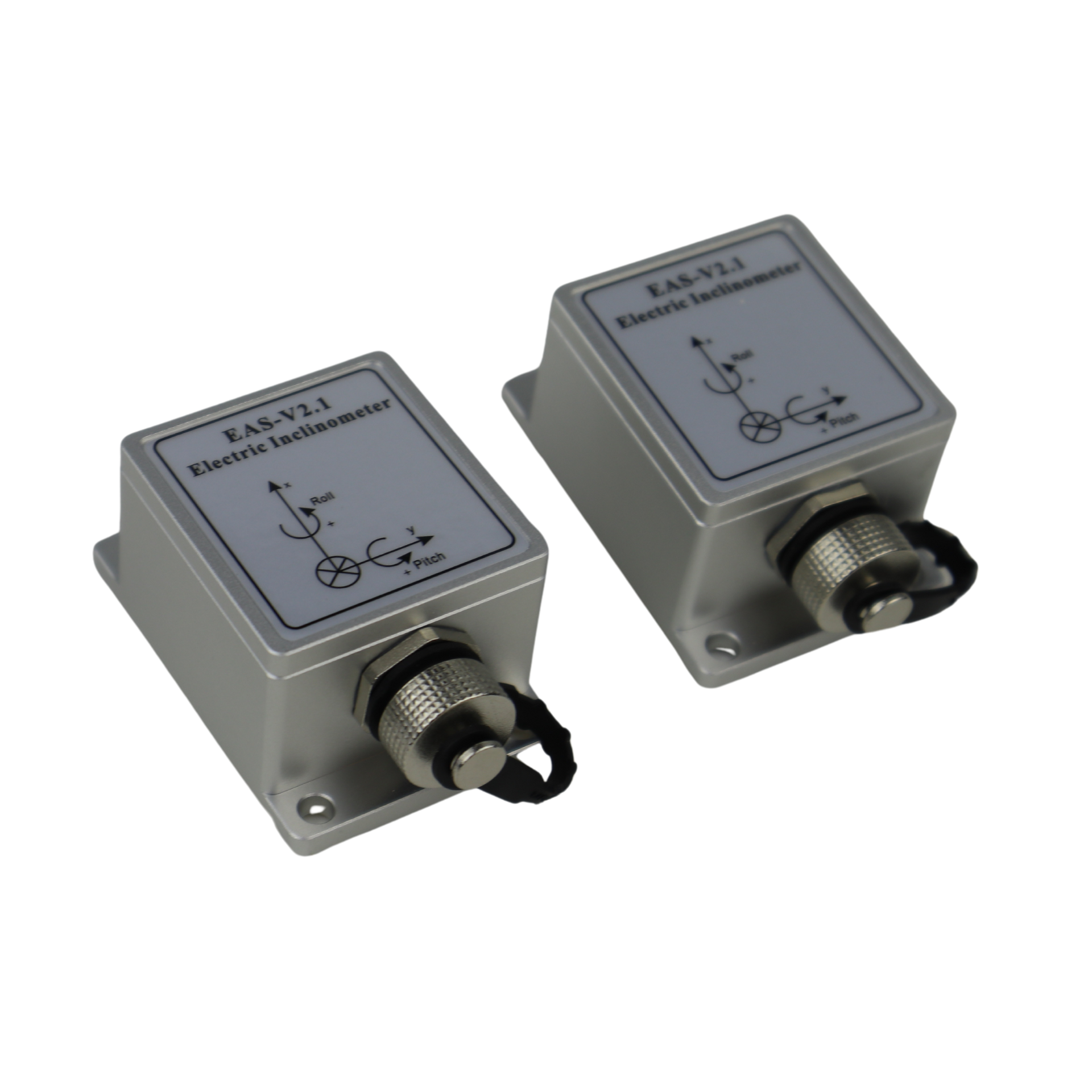

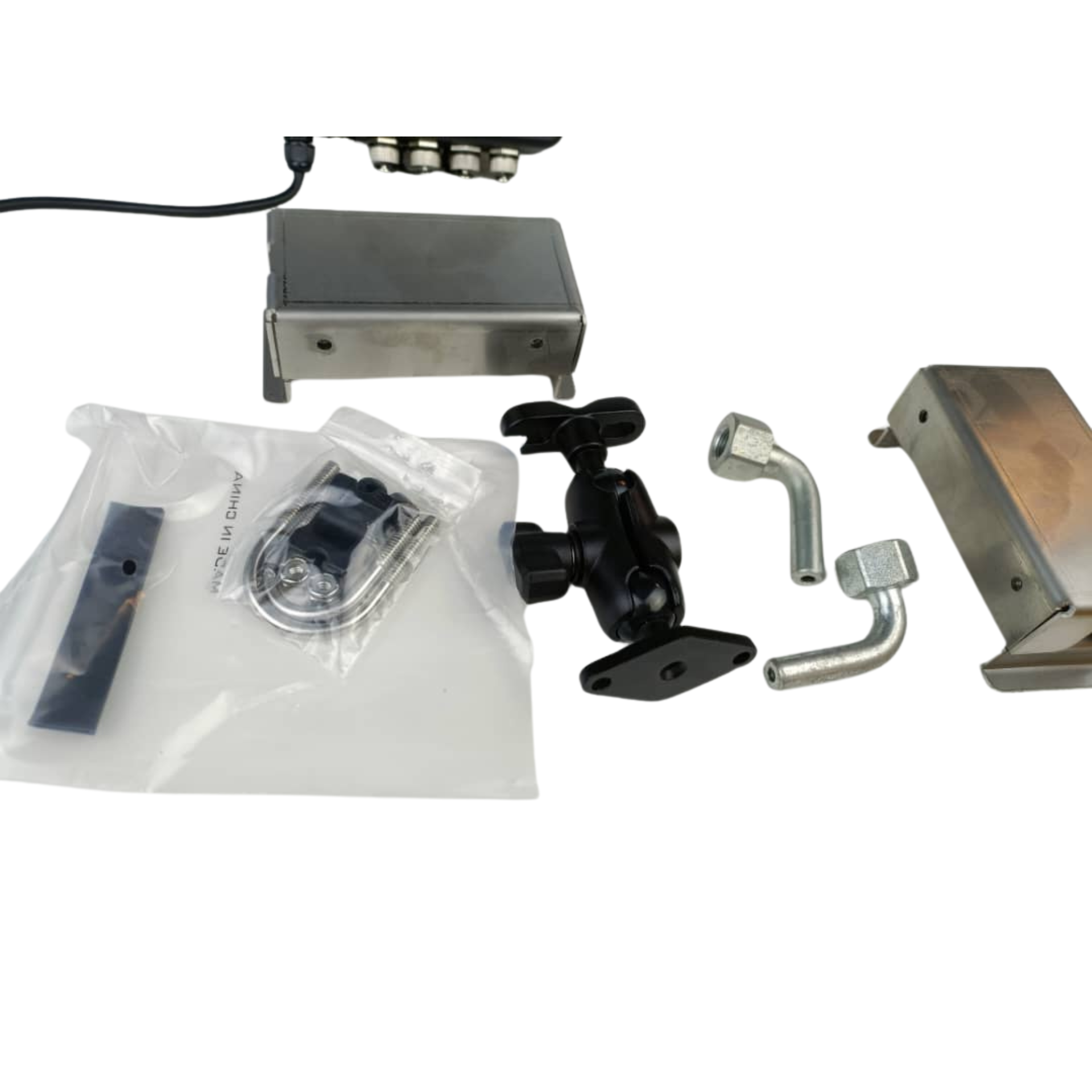

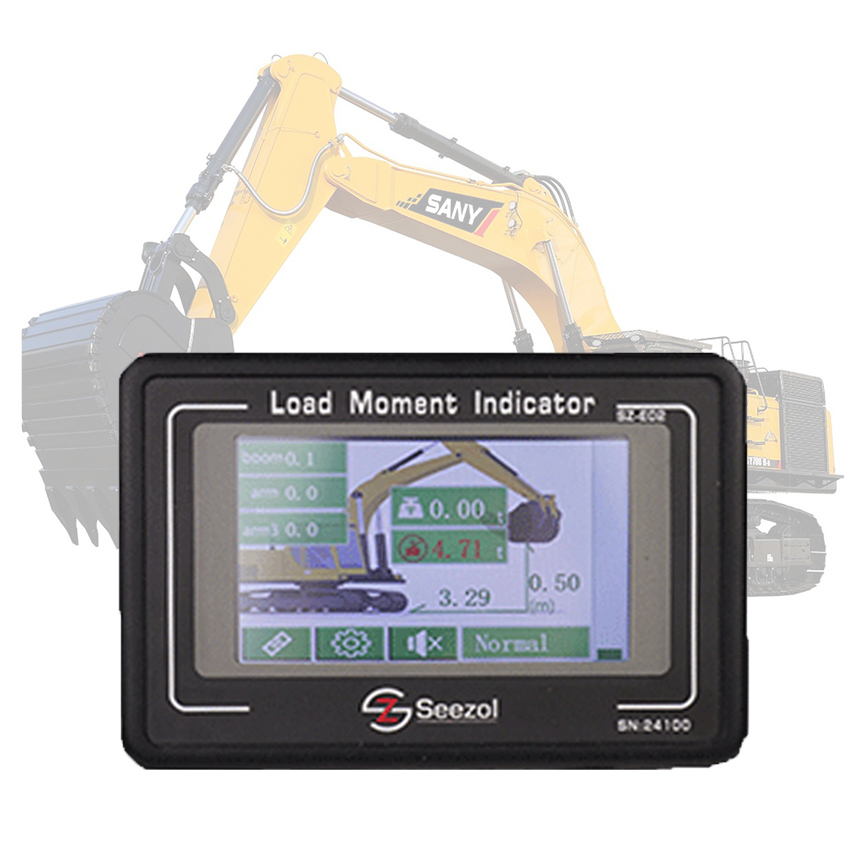

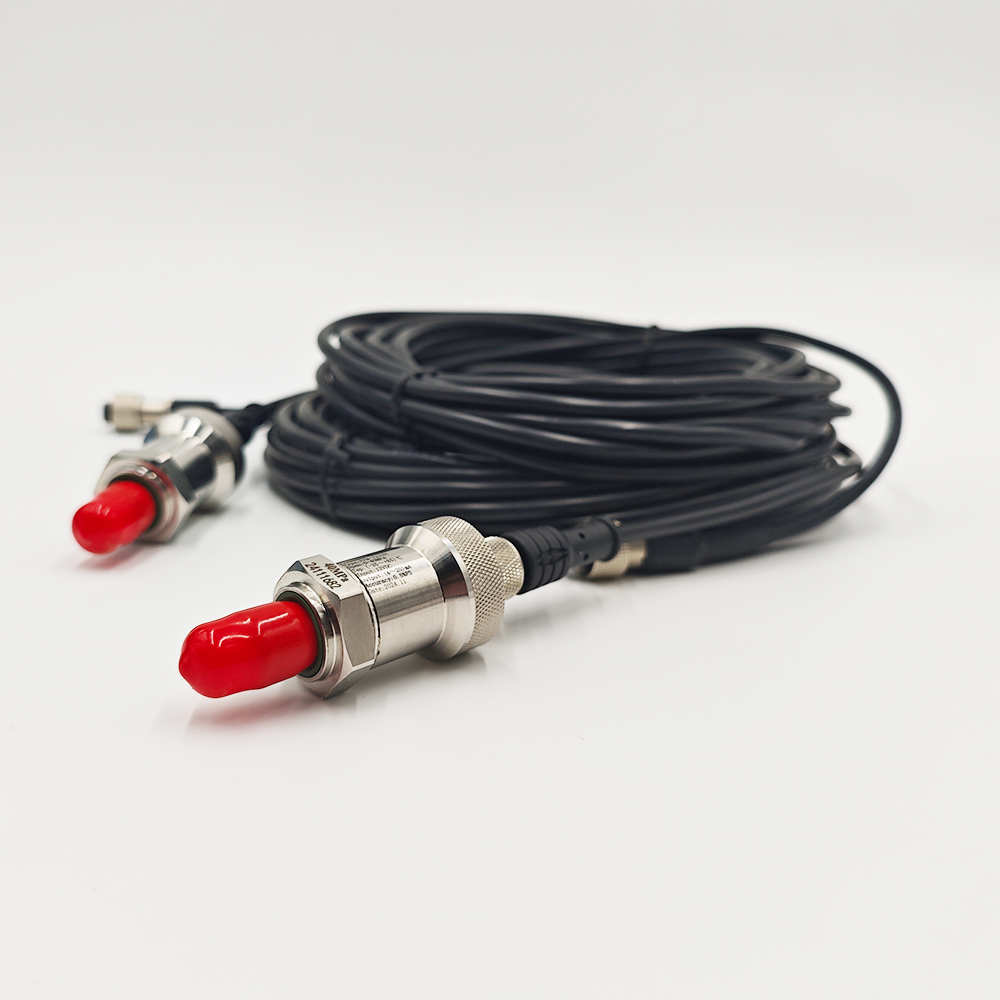

Module design is adopted in Model SZ-E02 LMI, which is composed of weight sensor, angle & range sensor, signal transmission cable, microcomputer host(including power supply, monitor, signal processor, control output) and other parts.
