Wireless Dynamometer Introduction:
A wireless dynamometer is commonly used in mining and port operations. It is a device used to measure weight and load, and it can transmit the measurement results to a remote display or computer through wireless signals. In mining and port operations, wireless load cells can be used to measure the weight of goods to ensure safe loading and unloading. Additionally, wireless load cells can also be used to monitor the load on equipment to ensure it operates within a safe range.
| Power on zero range | 20% F.S. | Manual zero range | 4% F.S. |
| Tare range | 20% F.S. | Operating temp. | - 20℃ ~ + 50℃ |
| Battery life | ≥50 hours | Stable time | ≤5 seconds |
| Overload indication | 100% F.S. + 9e | Max. safety load | 125% F.S. |

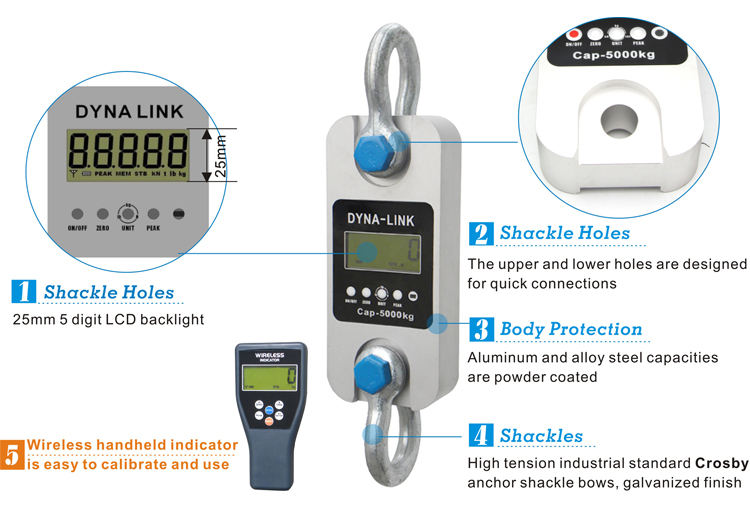

| Ultimate load | 400% F.S. | Body display | 25mm (1’’) 5digits LCD with backlight |
| Indicator display | 25mm (1’’) 5digits LCD with backlight | Body battery | “LR6(AA)”size alkaline batteries. 1.5V*4 |
| Indicator battery | “LR6(AA)”size alkaline batteries. 1.5V*4 | Operating humidity | ≤85% RH under 20℃ |
| Wireless distance | Min. 80m(default) [200m(optional)] | Wireless frequency | 2.4GHz(default),433MHz,868MHz(optional) |
