ZLP630
sym
| Mode. | ZLP630 | ZLP630 | ZLP630 | ZLP630 | ZLP630 | 2LP800 | ZLP1000 |
| Height | 100m | ||||||
| Rated Load (kg) | 630 | 630 | 630 | 630 | 630 | 800 | 1000 |
| Length of Platform(B) | 1 | 2 | 3 | 5 | 6 | 7.5 | 7.5/10 |
| Safely Lock type | LST30 | LST30 | LST30 | LST30 | LST30 | LST30 | LST30 |
| Hoist Model | LTD6.3 | LTD6.3 | LTD6.3 | LTD6.3 | LTD6.3 | LTD8.0 | LTD10.0 |
| Volune(m3) | 1.9 | 2.1 | 2.3 | 2.8 | 2.9 | 3.2 | 3.6,4.0 |
| 20,containter(pcs) | 20 | 16 | 12 | 10 | 10 | 9 | 8 |
| Counter Weight | 25x16PCS | 25x16PCS | 25x24PCS | 25x32PCS | 25x36PCS | 25x40PCS | 25x44PCS |
| Dianeter of Steel Rope(min) | 8.3 | 8.3 | 8.3 | 8.3 | 8.3 | 8.6 | 9.1 |
| Voltage(v) | 380 | 380 | 380 | 380 | 380 | 380 | 380 |
| Weight (kg) (Alumlnum alloy) | 1140 | 1170 | 1400 | 1650 | 1750 | 1930 | 2250 |
| feight(kg) (Steel) | 1170 | 1220 | 1500 | 1740 | 1890 | 2100 | 2560/2670 |
| eight(kg) Steel with galvaniz | 1170 | 1220 | 1500 | 1740 | 1890 | 2100 | 2560/2670 |
Technical Parameter of ZLP1000
| Model No. | ZLP1000 |
| Rated Load | 1000kg |
| Lifting Speed | 8-10m/min |
| Standard Length | 2.5m x 3 sections |
| Dimension of platf(rm(LX WX H) | 7500mmx690mmx1300mm |
| Hoist Power | 2.2kwx2pcs |
| Model of hoist | LTD10 |

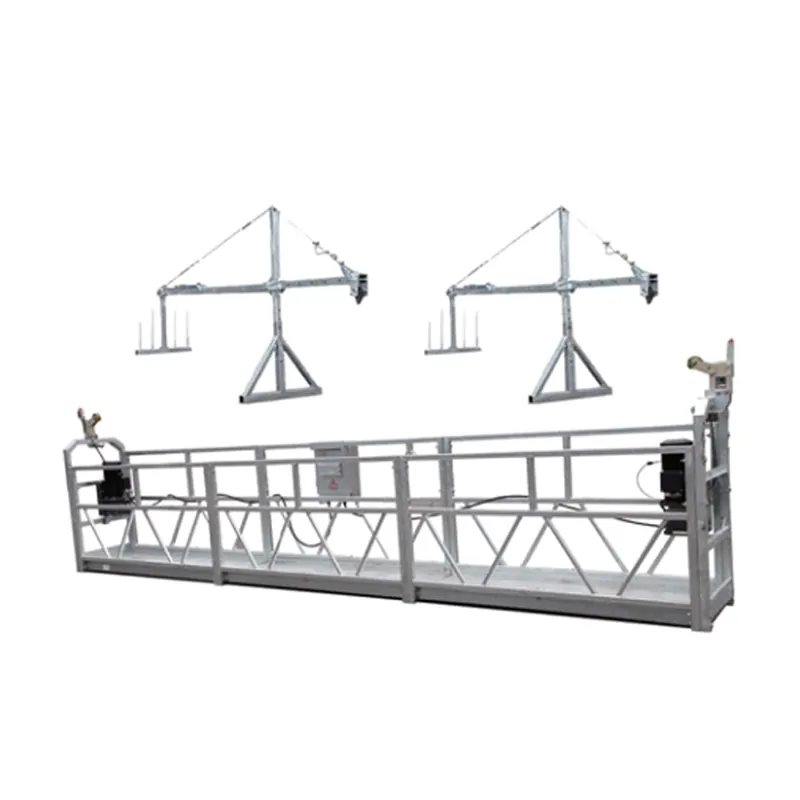

Suspended Platform Spare Parts
1. Platform: Steel and Ahnniniini Alloy qjlional. Painted and Hot Galvanized surfiicc ircatinent optional
2. Suspension Mechanism: Painted and Hot Galvanized surface treatment optional
3. Hoist: Model No. LTD63 & LTD8.0(power 1.5kur,I.8kw,2.2kw optional)
4. Electrical Control Box: Scientific design, waterproof and anti- collision.
5. Safely Lock: Dacro stainless steel, higii intensity, if till happened whidi can be locked inmiediatcly,100% qualified.
6. Steel Wire Rope: diameter 8.3mm, 8.6mm, 9.1mm optional
7. Safety Rope: diameter 18mm. breaking force 47250N
8. Cable: GB 2.0 level, natural weather resistance rubber
9. Counterweight: Concrete, concrete with steel cover, Iron-cast optional.
| SYM Hoist&Tower Crane Equipment is the professional crane and lift platform manufacturer in China . We supply all kinds of original spare parts for tower crane. Our Advantages 1) 100% originals parts 2) More 20+ experience 3) Protect the rights of our clients, from pre-sales to after-sales process FAQ Q1: Are you a trading company or a factory? Q7: What info should I provide with the inquiry? A7: Quantity,Model |
