Q1: What is a tower crane traveling mechanism?

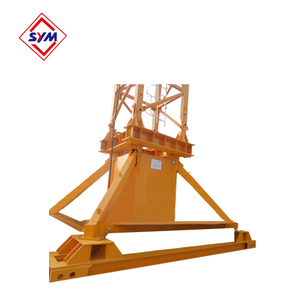

A: The traveling mechanism (also called a rail traveling mechanism) enables a tower crane to move along specially installed tracks on the construction site. Unlike stationary tower cranes, traveling cranes have a wheeled undercarriage that allows horizontal movement.
Q2: What are the primary functions of the traveling mechanism?
1. Horizontal mobility: Allows the crane to cover a larger work area without disassembly
2. Precision positioning: Enables fine adjustments to crane location for optimal lifting
3. Load coverage: Expands service area beyond a fixed radius point
4. Site adaptability: Can be repositioned as construction progresses
Q3: What roles does it play on construction sites?
1. Sequential construction: Follows building progress along the construction path
2. Multi-zone coverage: Serves different areas of large sites sequentially
3. Obstacle avoidance: Can maneuver around site obstacles
4. Optimized material handling: Reduces horizontal load movement by positioning closer to delivery points
Q4: What are the advantages compared to traditional fixed cranes?
Advantage | Traveling Mechanism | Traditional Fixed Cranes |
Coverage Area | Linear coverage along track (often 100+ meters) | Fixed circular coverage only |
Relocation Flexibility | Can be repositioned without disassembly | Requires complete disassembly/assembly |
Site Utilization | Can service multiple buildings along a path | Limited to single service area |
Cost Efficiency | Lower cost per area covered; reduced need for multiple cranes | May require multiple cranes for large sites |
Project Adaptability | Can follow construction progression | Static position throughout project |
Obstacle Navigation | Can move around temporary site obstacles | Limited by fixed position |
Precision Placement | Fine-tune position for delicate placements | Relies only on crane's rotational/slewing motion |
Q5: Are there any limitations?
Yes, traveling mechanisms require:
1.Level, prepared track foundation
2.Additional site space for tracks
3.Regular track maintenance and inspection
4.Slightly more complex operation
5.Higher initial setup requirements than fixed bases
Q6: What types of projects benefit most?
1. Linear projects: Bridges, dams, long buildings
2. Large-scale developments: Multiple buildings in a row
3. Industrial construction: Power plants, refineries
4. Shipbuilding: Moving along dry docks
6.Any project requiring material delivery along an extended path
The traveling mechanism represents a significant evolution in crane technology, providing dynamic positioning that fixed cranes cannot match, particularly for elongated or large-area construction sites where optimal placement reduces material handling time and costs.
