In-Depth Technical Analysis of Tower Crane Slewing Ring Systems

In-Depth Technical Analysis of Tower Crane Slewing Ring Systems

——Core Transmission Mechanism & Maintenance Best Practices

As the pivotal transmission component in tower crane rotation mechanisms, slewing ring reliability directly impacts operational safety and construction efficiency. Based on industry standards and our engineering expertise, this article systematically explores system architecture, failure prevention, and technological innovations.

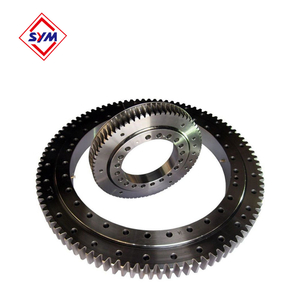

1. Functional Characteristics & Structural Design

1. Power Transmission Hub

• Amplifies motor torque through pinion-slewing ring meshing for 360° rotation

• Standard configuration: Planetary gear reducer (80-120:1 ratio) + gear transmission pair

1. Modular Design Innovations

• Split gear head: Utilizes spline connection + triple-bolt compression structure, improving impact resistance by 40% vs traditional single-bolt solutions

• Forged planetary carrier: Reduces non-machined surfaces by 25%, mitigating metal fatigue risks

2. Maintenance Protocols (Compliant with GB/T5031)

1. Lubrication Management

• Planetary gearbox: Replace CLP220 gear oil every 500hrs (low-temperature variant for winter)

• Slewing ring raceway: Apply calcium-based grease every 100hrs until tooth surface overflow

1. Bolt Inspection

• High-strength bolts (Grade 10.9): Quarterly torque verification (>15% attenuation requires replacement)

• Ultrasonic stress testing: ±3% accuracy improvement over traditional torque wrenches

3. Cutting-Edge Technological Advancements

1. Smart Control Systems

• VACON inverter synchronization: Achieves multi-motor torque balance via fiber optics, reducing impact loads by 35%

• AI wear prediction: 92% accuracy in failure alerts using CNN analysis of lubricant metal particles

1. Material Engineering

• Bimetal composite casting: High-chromium cast iron surface (HRC58-62) + QT600-3 ductile iron base, tripling service life
